Documents: 3RT24461AL20
3RT24461AL20 | CONTACTOR. AC1:140A. 230 V AC 50/60HZ | Siemens Electrical
CONTACTOR. AC-1 140 A / 400 V. AC 230 V. 50/60 HZ. 3-POLE. SIZE S3. SCREW CONNECTION

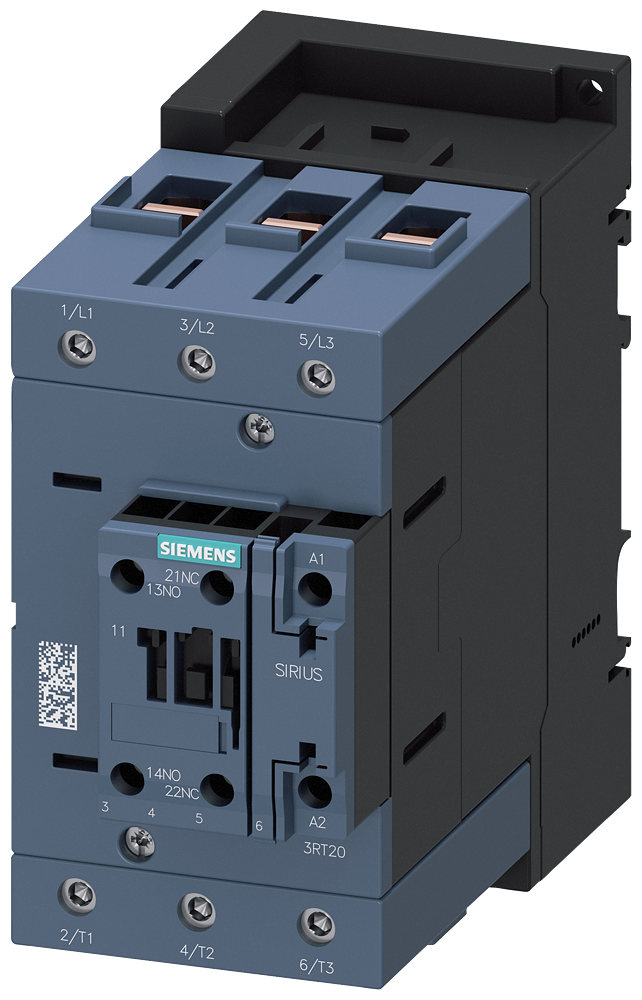

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT24461AL20
Overview Details for 3RT24461AL20
Specifications
Item Number | 3RT24461AL20 |
Brand | Siemens Electrical |
Height | 6.800 IN |
Length | 7.100 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Number of normally closed contacts as main contact | 0 |
Rated control supply voltage Us at AC 50HZ | 230 V |
Rated control supply voltage Us at AC 60HZ | 230 V |
Rated operation current Ie at AC-1; 400 V | 140 A |
Rated operation current Ie at AC-3; 400 V | 44 A |
Rated operation power NEMA | 29.419949999 kW |
Type of electrical connection of main circuit | Frame clamp |
Voltage type for actuating | AC |
Weight | 3.79700 LB |
Width | 3.100 IN |
