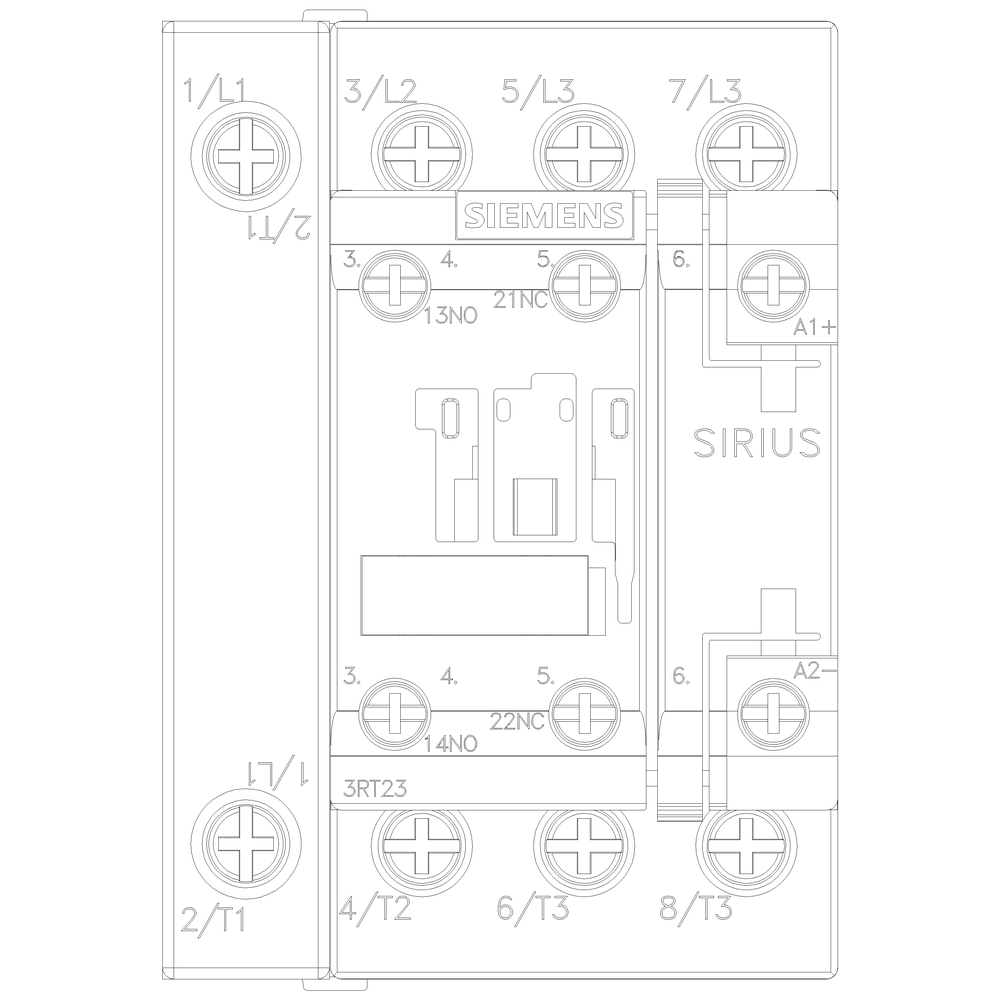

3RT23271BG40 | CONTACTOR RES S0 42A 125VDC 5NO/1NC SCRW | Siemens Electrical

CONT., AC-1, 33KW/400V, AC-1 50A, 1NO+1NC, DC 125V, 4-POLE, 4NO, SZ S0, SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT23271BG40

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23271BG40

Item Number	3RT23271BG40
Brand	Siemens Electrical
Height	5.120 IN
Length	3.670 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	4
Rated control supply voltage Us at DC	125 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	15.5 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power at AC-4; 400 V	7.5 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	1.36400 LB
Width	3.040 IN
