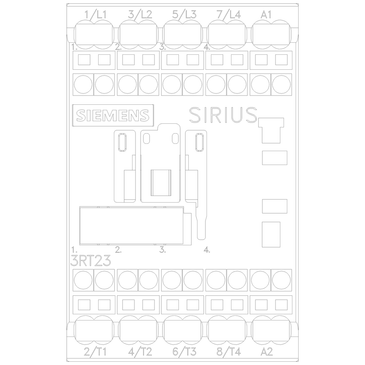

3RT23172AM20 | CONTACTOR RES S00 20A 208VAC 4NO SPRG | Siemens Electrical

4NO contactor, AC1 22a AC 208v 50/60HZ 4-pole, 4NO, sz s00, spring-loaded terminal

Brand: Siemens ElectricalSKU: 3RT23172AM20

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23172AM20

Item Number	3RT23172AM20
Brand	Siemens Electrical
Height	3.05200 IN
Length	2.89400 IN
Modular version	TRUE
Number of main contacts as normally open contact	4
Rated control supply voltage Us at AC 50HZ	208 V
Rated control supply voltage Us at AC 60HZ	208 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power at AC-4; 400 V	4 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.56700 LB
Width	1.96900 IN
