3RT20471AP04 | CONTACTOR.AC3:55KW.2NO+2NC.230VAC 50HZ | Siemens Electrical

Power contactor. AC-3 110 A. 55 kW / 400 V 2 NO + 2 NC. 230 V AC. 50 Hz 3-pole. 3 NO. Size S3 screw terminal

Brand: Siemens ElectricalSKU: 3RT20471AP04

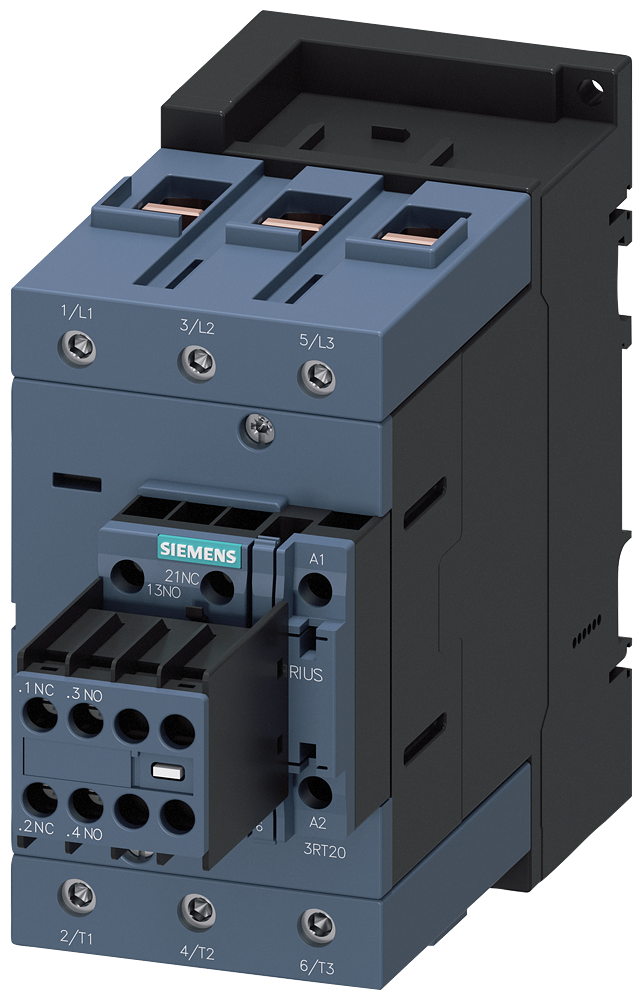

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20471AP04

Item Number	3RT20471AP04
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	230 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	110 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	3.83700 LB
