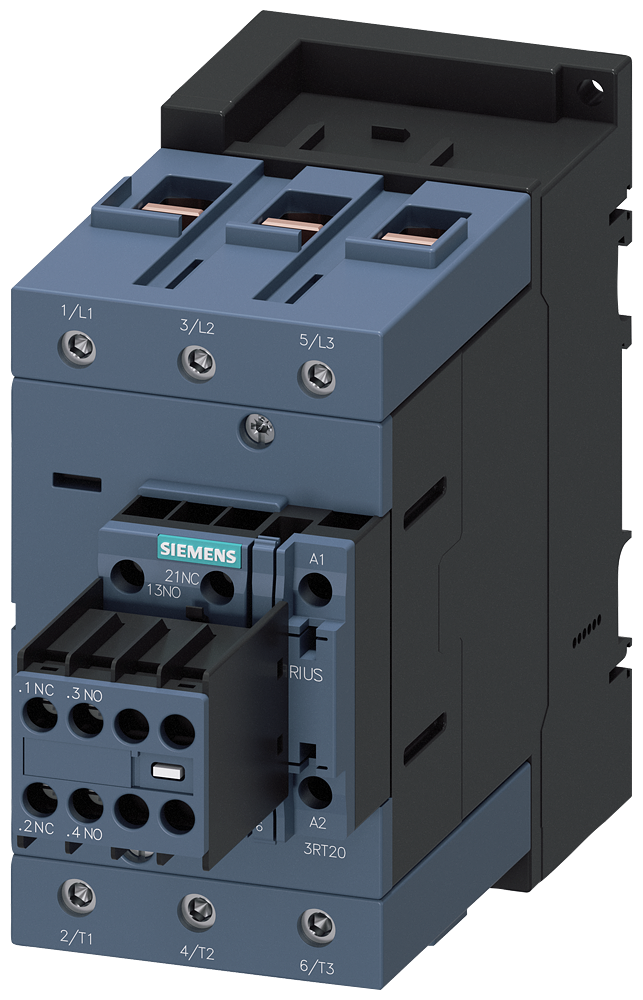

3RT20461AN24 | CONT..AC3:45KW.2NO+2NC.220VAC 50/60HZ | Siemens Electrical

power contactor. AC-3 95 A. 45 kW / 400 V 2 NO + 2 NC. 220 V AC. 50/60 Hz 3-pole. 3 NO. Size S3 screw terminal

Brand: Siemens ElectricalSKU: 3RT20461AN24

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20461AN24

Item Number	3RT20461AN24
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	95 A
Rated operation current Ie at AC-4; 400 V	80 A
Rated operation power at AC-3; 400 V	45 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	3.86300 LB
