3RT20281AT60 | CONTACTOR.AC3:18.5KW 1NO+1NC AC600V 60HZ | Siemens Electrical

Power contactor. AC-3 38 A. 18.5 kW / 400 V 1 NO + 1 NC. 600 V AC 60Hz. 3-pole. size S0 screw terminals

Brand: Siemens ElectricalSKU: 3RT20281AT60

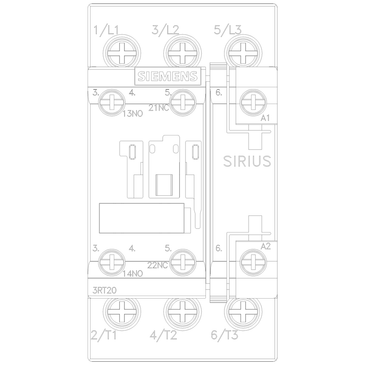

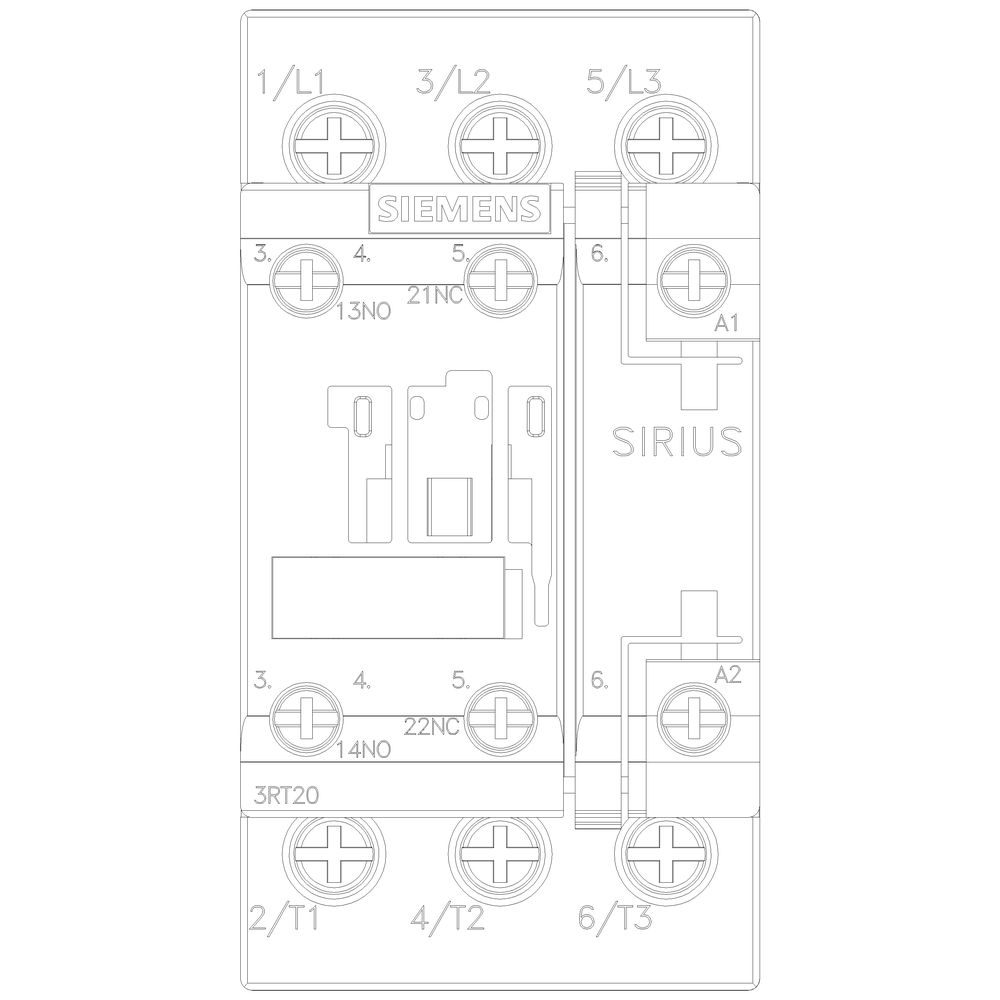

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20281AT60

Item Number	3RT20281AT60
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 60HZ	600 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	38 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	18.5 kW
Rated operation power NEMA	18.38746875 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.93500 LB
