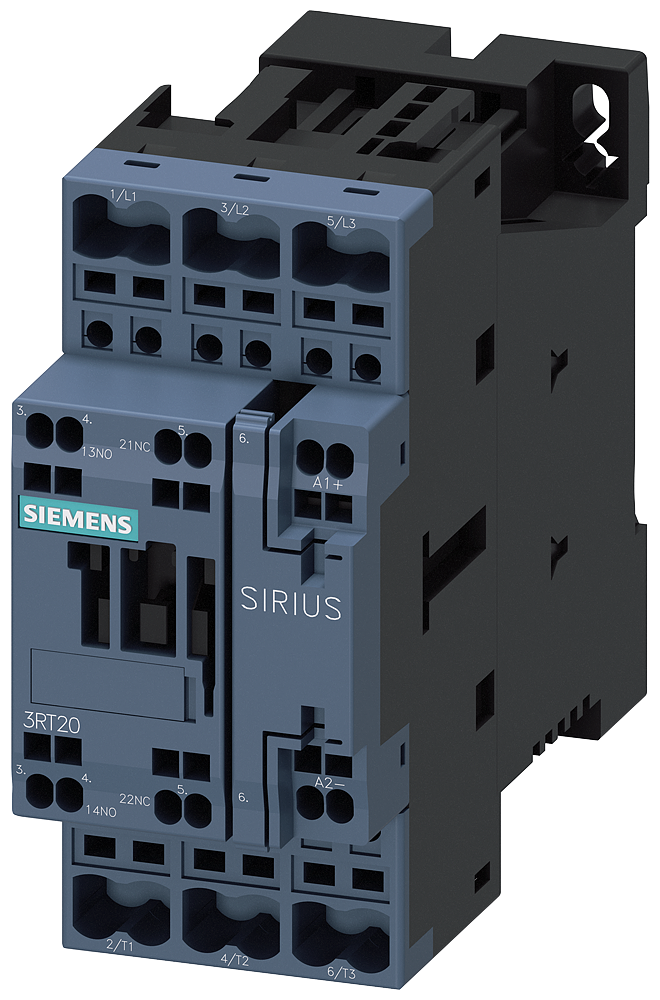

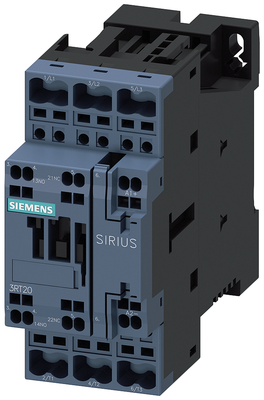

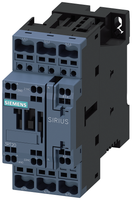

3RT20272DB40 | CONTACTOR | AC3:15KW 1NO+1NC DC24V M.VARIS | Siemens Electrical

Power contactor, AC-3e/AC-3, 32 A, 15 kW / 400 V, 3-pole, 24 V DC, with plugged-in varistor, auxiliary contacts: 1 NO + 1 NC, spring-loaded terminal

Brand: Siemens ElectricalSKU: 3RT20272DB40

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20272DB40

Item Number	3RT20272DB40
Brand	Siemens Electrical
Height	4.290 IN
Length	4.530 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	32 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	15 kW
Rated operation power NEMA	14.709974999 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.42200 LB
Width	2.170 IN
