Documents: 3RT20261AU60
3RT20261AU60 | CONTACTOR.AC3:11KW 1NO+1NC AC277V 60HZ | Siemens Electrical
CONTACTOR. AC-3. 11KW/400V. 1NO+1NC. AC 277V 60HZ. 3-POLE. SZ S0 SCREW TERMINAL

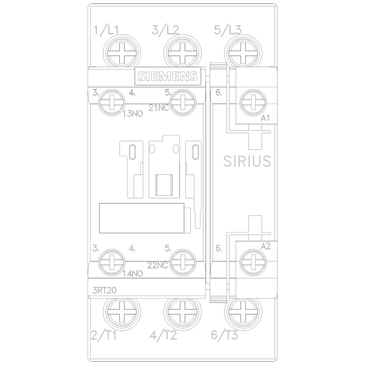

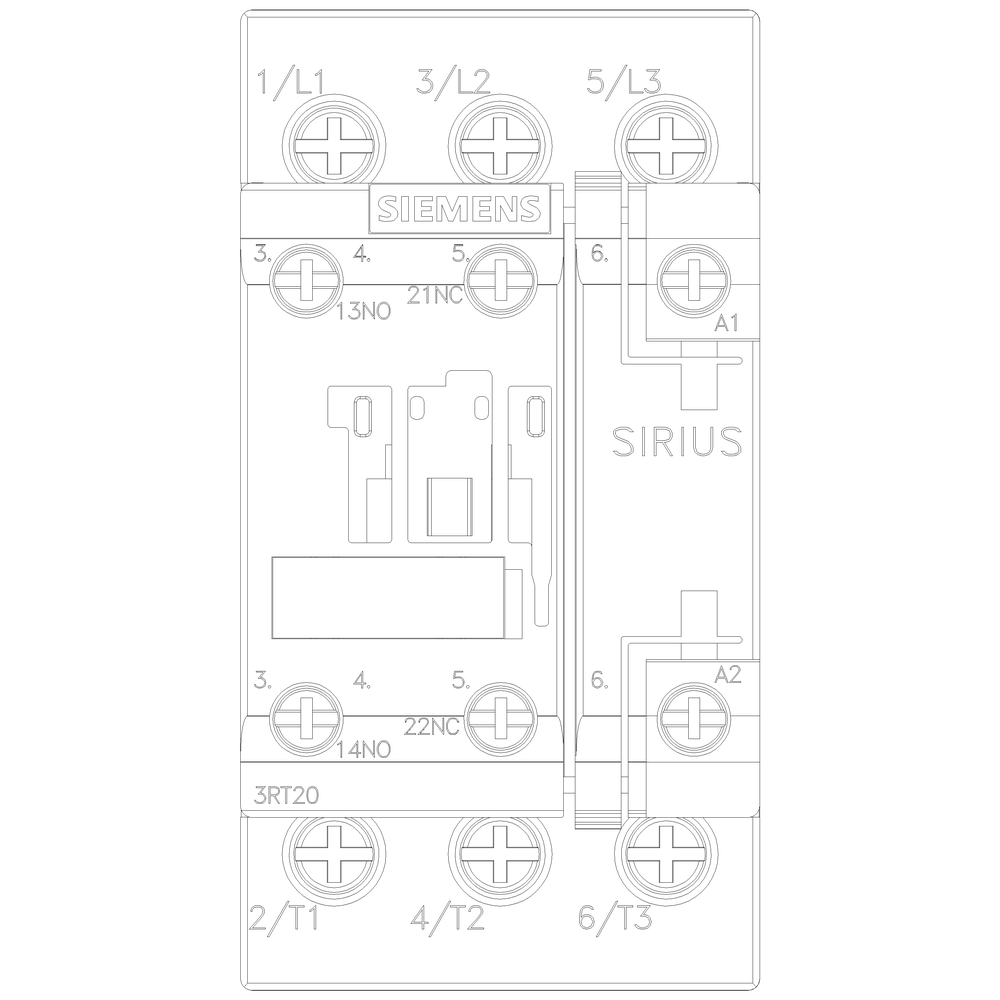

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20261AU60
Overview Details for 3RT20261AU60
Specifications
Item Number | 3RT20261AU60 |
Brand | Siemens Electrical |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 60HZ | 277 V |
Rated operation current Ie at AC-1; 400 V | 40 A |
Rated operation current Ie at AC-3; 400 V | 25 A |
Rated operation current Ie at AC-4; 400 V | 15.5 A |
Rated operation power at AC-3; 400 V | 11 kW |
Rated operation power NEMA | 11.032481249 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 0.90900 LB |
