Documents: 3RT20151CP043MA0

Datasheet

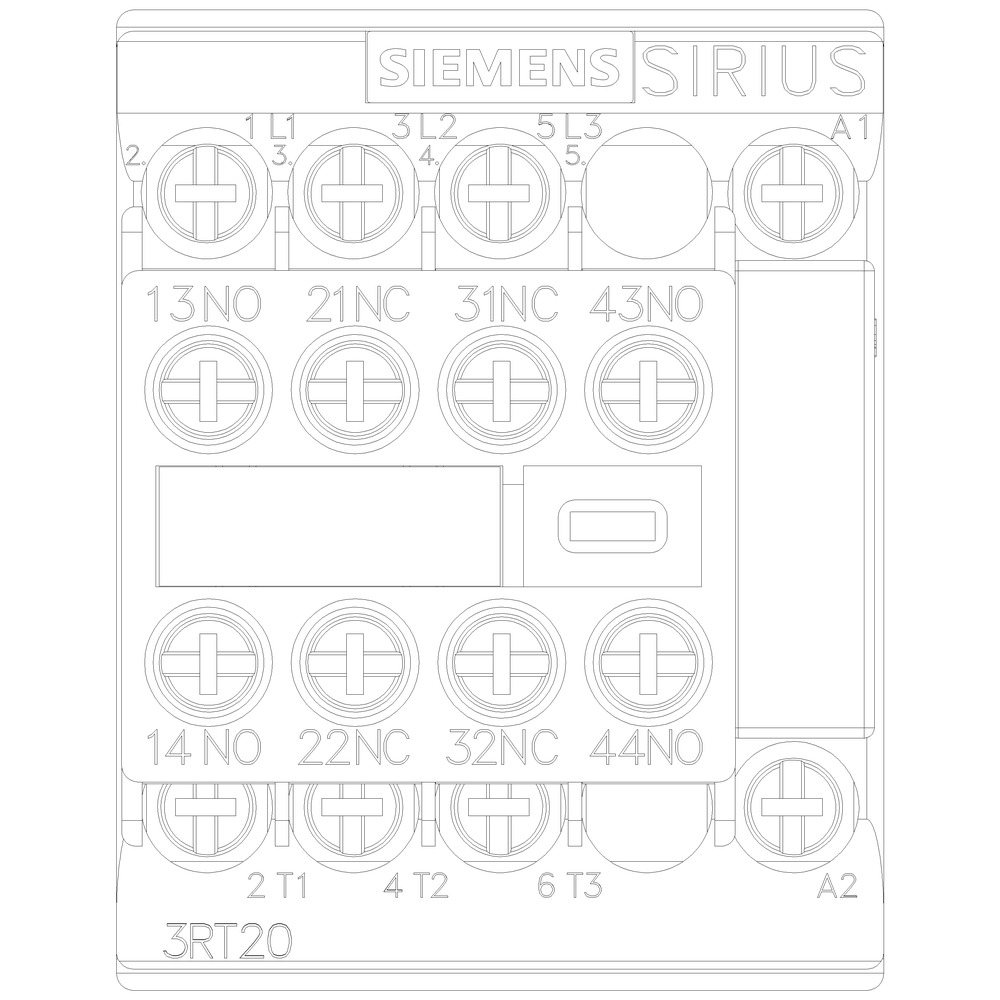

3RT20151CP043MA0 | CONTACTOR S00 7A 230VAC 2NO/2NC SCRW | Siemens Electrical

CONTACTOR, AC-3, 3KW/400V, 2NO+2NC, AC 230V, 50/60 HZ, W. PLUGGED-ON VARISTOR 3-POLE, SZ S00 SCREW TERMINAL PERMANENT AUX. SWITCH FOR SUVA APPLICATIONS

Brand: Siemens ElectricalSKU: 3RT20151CP043MA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20151CP043MA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20151CP043MA0

Specifications

Item Number	3RT20151CP043MA0
Brand	Siemens Electrical
Height	4.730 IN
Length	2.450 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	230 V
Rated control supply voltage Us at AC 60HZ	230 V
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.291666666666667
Rated operation current Ie at AC-4; 400 V	6.5 A
Rated operation power at AC-3; 400 V	3 kW
Rated operation power NEMA	2.20649625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.61600 LB
Width	1.970 IN
