Documents: 3RT1066-6AF36

Datasheet

3RT1066-6AF36 | CONTACTOR S10 300A 110-127VUC 3P BAR | Siemens Electrical

Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 110 - 127 AC/DC Coil Frame Size S10,300A Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 3

Brand: Siemens ElectricalSKU: 3RT1066-6AF36

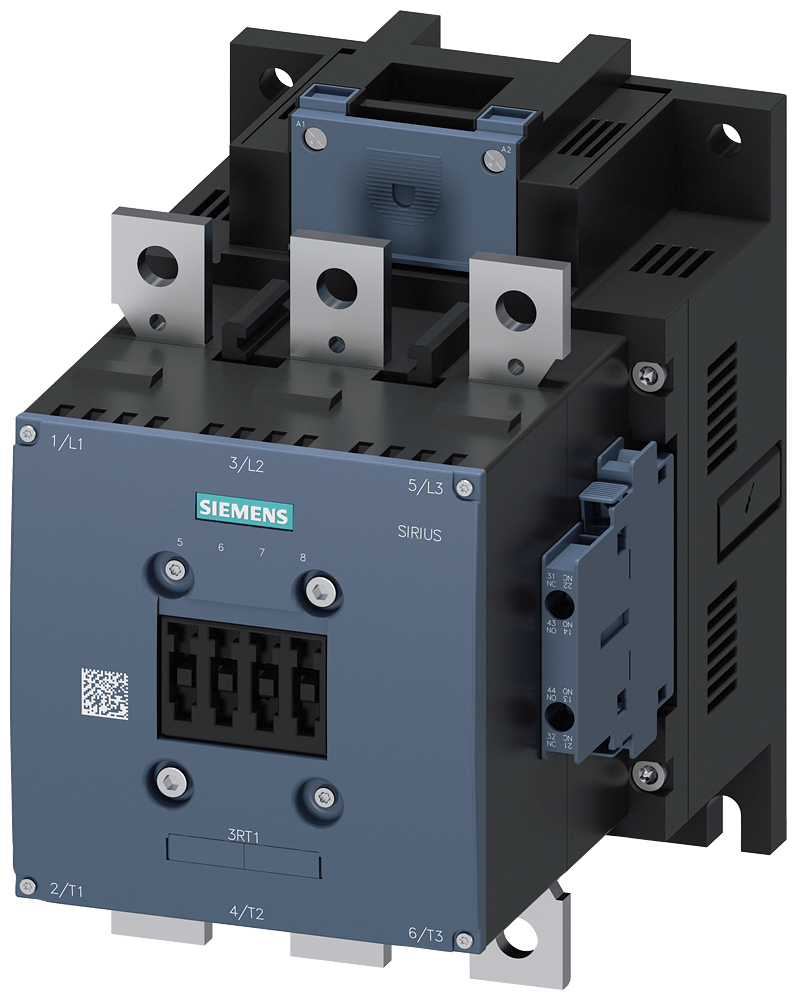

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1066-6AF36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1066-6AF36

Specifications

Item Number	3RT1066-6AF36
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	110 V
Rated control supply voltage Us at DC	110 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	300 A
Rated operation current Ie at AC-4; 400 V	280 A
Rated operation power at AC-3; 400 V	160 kW
Rated operation power at AC-4; 400 V	160 kW
Rated operation power NEMA	183.8746875 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.600 LB
Width	10.440 IN
