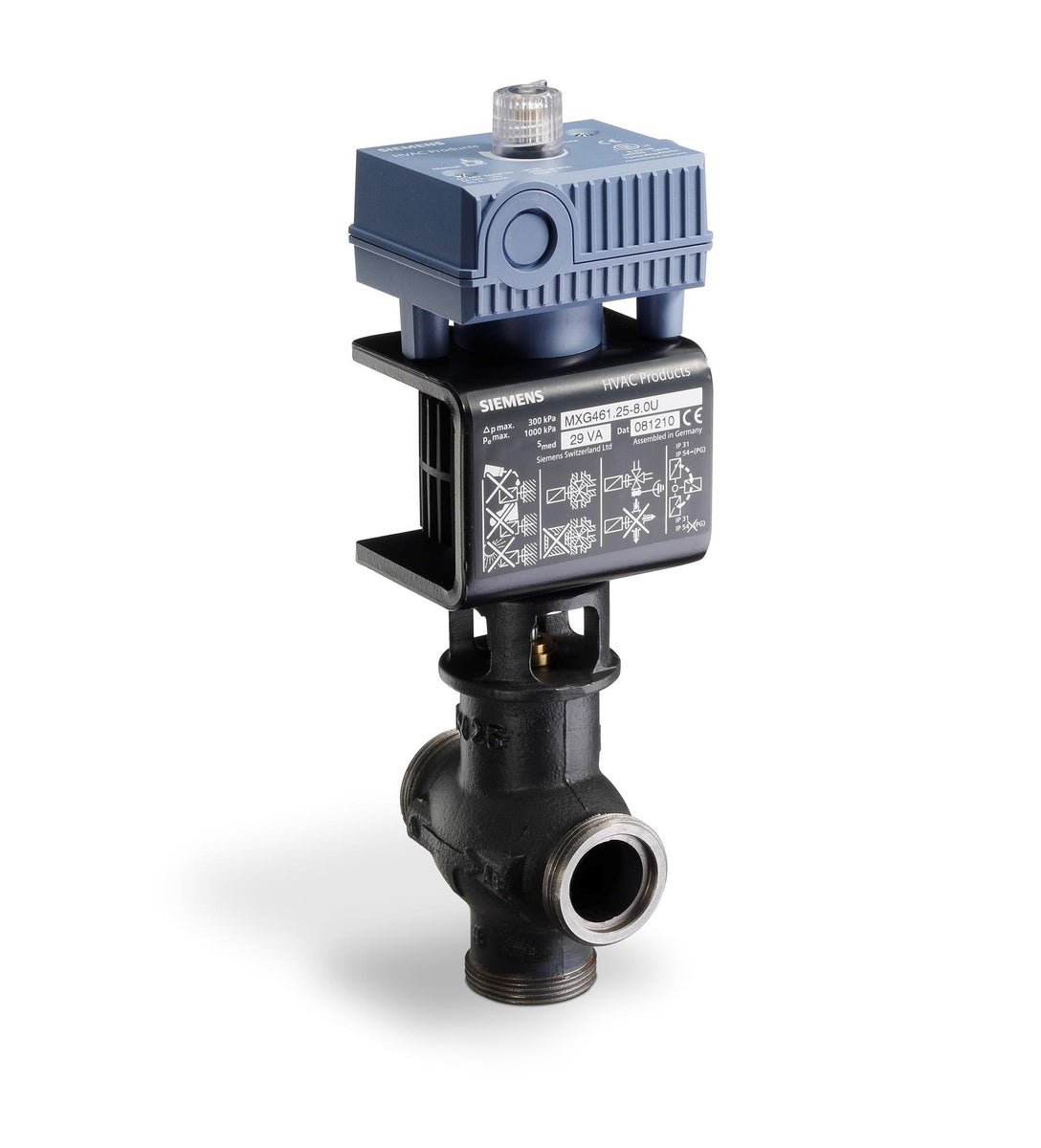

MXG461B25-8 | Magnetic Valve, 1", 2-way or floating, 9.3 Cv, 0 to 10V control, w/ fittings | Siemens
This MX Control Valve with Electronic Modules is designed for 0 to 10V control of domestic (potable) water, chilled water and hot water systems. This 1" valve can be configured for straight-through or floating applications and has a 9.3 Cv and 102 psi close-off. This valve has 1000:1 resolution and a positioning time is ≤ 2 seconds, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and cUL listed.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MXG461B25-8
Documents and manuals
Siemens MXG461B25-8 Documents
Datasheet(Modulating control valves. PN16. MXG461B..)Datasheet(MXG461B Series Modulating Control Valves with Magnetic Actuators. Positioning Control and Position Feedback for Domestic Water Technical Instructions)Declaration of conformity(CE Declaration MXG461B../MXG462S..)Declaration of conformity(DVGW certificate. drinking water. PN16. MXG461B..)Declaration of conformity(RCM Supplier's Declaration of conformity MXG461B.../MXG462S..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(UKCA Declaration of conformity. Electromagnetic valve actuators MXG461B../MXG462S..)Environmental Declaration(Modulating control valves. PN16. MXG461B... DN15..25)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Other datasheet(Modulating control valves with magnetic actuator)Dimension Drawings(2/3-port. MXG461B... DN 15. 2D drawings. dxf/dwg format)Dimension Drawings(2/3-port. MXG461B... DN 25. 3D drawings. dwg format)Dimension Drawings(2/3-port. MXG461B... DN 25. 3D drawings. stp format) More Info
Overview
Details for MXG461B25-8
Magnetic Valve, 1", 2-way or floating, 9.3 Cv, 0 to 10V control, w/ fittings
Specifications
- Operating range
- DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Leakage rate bypass
- 0.2 % of kvs
- Medium
- Water
- Stroke resolution ΔH/H100
- 1:1000
- Material, valve body
- Red brass CC499K (Rg5)
- Δps
- 700 kPa
- Connecting thread
- G 1½" B
- Ambient temperature, operation
- -5…45 °C
- Connecting thread
- G 1½ B "
- Degree of protection
- IP31
- Leakage rate
- 0.05 % of kvs
- Material, inside set
- CrNi steel
- Material, valve body
- Red brass CC491K, low-lead amount
- Medium temperature
- -20…130 °C; -4…266 ºF
- Mounting position
- Upright to horizontal
- Nominal pressure
- PN 16
- Operating voltage
- 24 VAC, 20…30 VDC
- Permissible operating pressure
- 1600 kPa
- Position feedback
- DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Positioning signal
- DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
- Positioning time
- 2 s
- Power consumption
- 33 VA
- Spring return function
- A->AB closed
- Valve characteristic
- Equal-percentage , Linear
- Δpmax
- 700 kPa
- Dimensions (W x H x D)
- 6.73 x 15.85 x 3.98 in
- Product conformity
- DVGW approved
- kvs
- 8 m³/h
- DN
- 25
