MXG461.50-30U | Magnetic Valve, 2", 2-way or floating, 35.1 Cv, 0-10V control, w/ NPT unions | Siemens
Details for MXG461.50-30U
Siemens part#: MXG461.50-30U

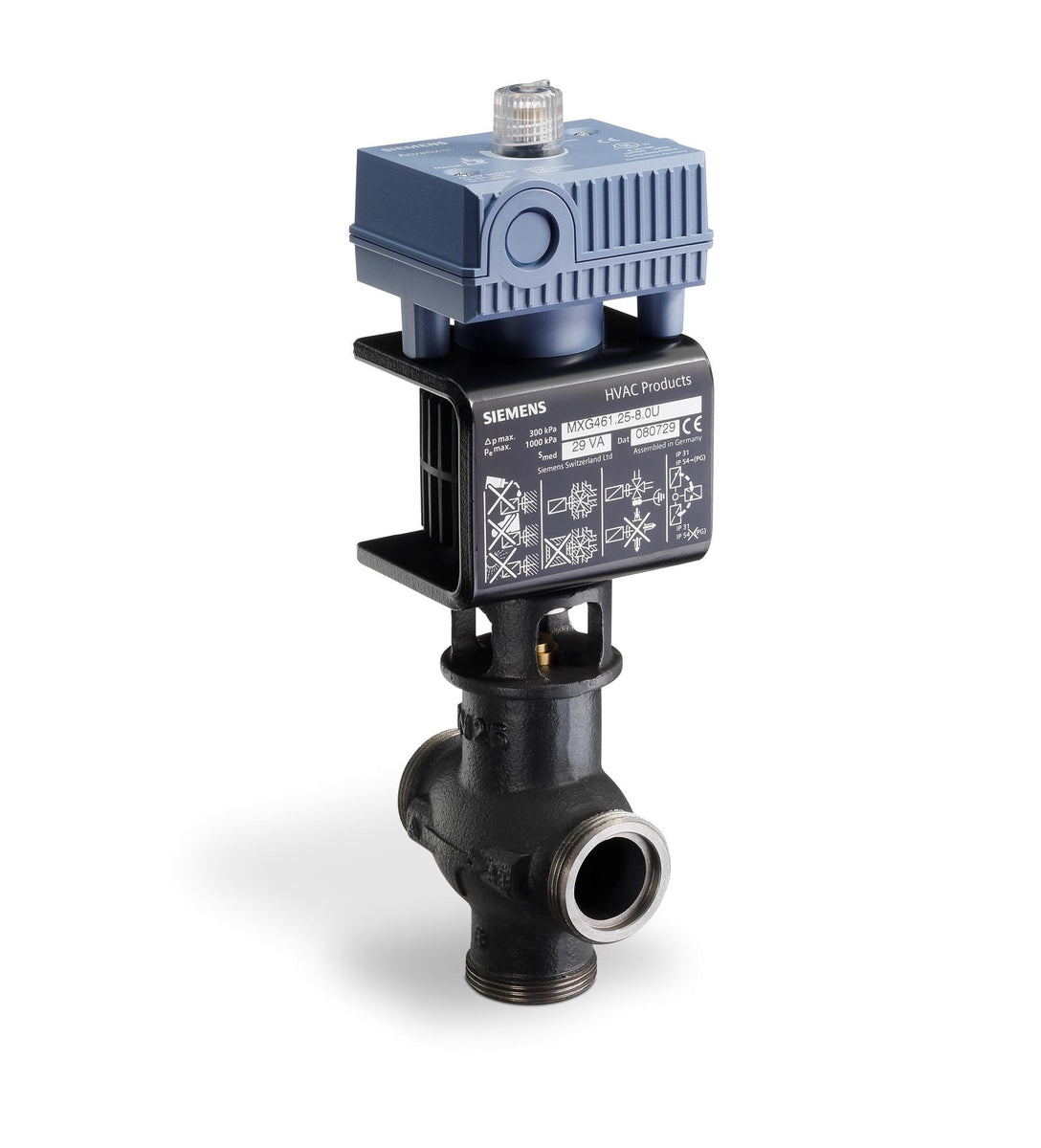

Magnetic Valve, 2", 2-way or floating, 35.1 Cv, 0-10V control, w/ NPT unionsThis MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This 2" valve can be configured for straight-through or floating applications and has a 35.1 Cv and 43 psi close-off. This valve has 1000:1 resolution and a positioning time is ? 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and cUL listed.
The MXG461...U (screwed fitting) and MXF461...U (flange fitting) valves are mixing or straight-through valves with a factory calibrated and mounted magnetic actuator. The magnetic actuator incorporates an electronics module for position control and positioning feedback. Control path A ? AB is closed when the valve is de-energized.
