M3FB25LX/A | 0 to 10V, 1"Valve, Hot Gas Bypass, 9.3 Cv, 460 PSI | Siemens

This M3FB Magnetic Valve is used for refrigeration applications. This 0 to 10V diverting valve is suitable for hot gas bypass and heat-recovery applications. This 1" valve has a 9.3 Cv, a maximum operating pressure of 460 psi and must be applied to closed loop applications.

Brand: SiemensSKU: M3FB25LX/A

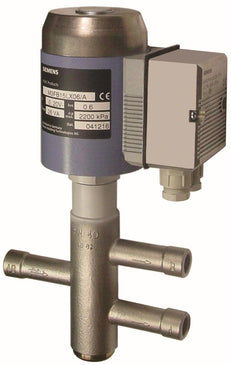

Siemens | M3FB25LX/A
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3FB25LX/A
Jump to: Overview & Specifications Reviews

Overview Details for M3FB25LX/A

0 to 10V, 1"Valve, Hot Gas Bypass, 9.3 Cv, 460 PSI

Specifications

Power consumption
40 VA
Stroke resolution ΔH/H100
1:200
Material, valve body
Steel
Ambient temperature, operation
-40…50 °C
Degree of protection
IP54
Leakage rate
0.05 % of kvs
Material, inside set
CrNi steel/brass
Material, valve body
Steel
Medium temperature
-40…120 °C; -40…248 ºF
Mounting position
Any
Nominal pressure
PN 32
Operating voltage
24 VAC
Permissible operating pressure
4300 kPa
Positioning signal
DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
Positioning time
1 s
Spring return function
AB-> A closed
Valve characteristic
Linear
Δpmax
1200 kPa
Dimensions (W x H x D)
7.87 x 14.02 x 3.94 in
kvs
8 m³/h
DN
25
