MXG461.25-8.0U | Magnetic 1" Valve, 2-way or floating, 9.4 Cv, 0 to 10V control, w/ NPT unions | Siemens

Siemens | MXG461.25-8.0U

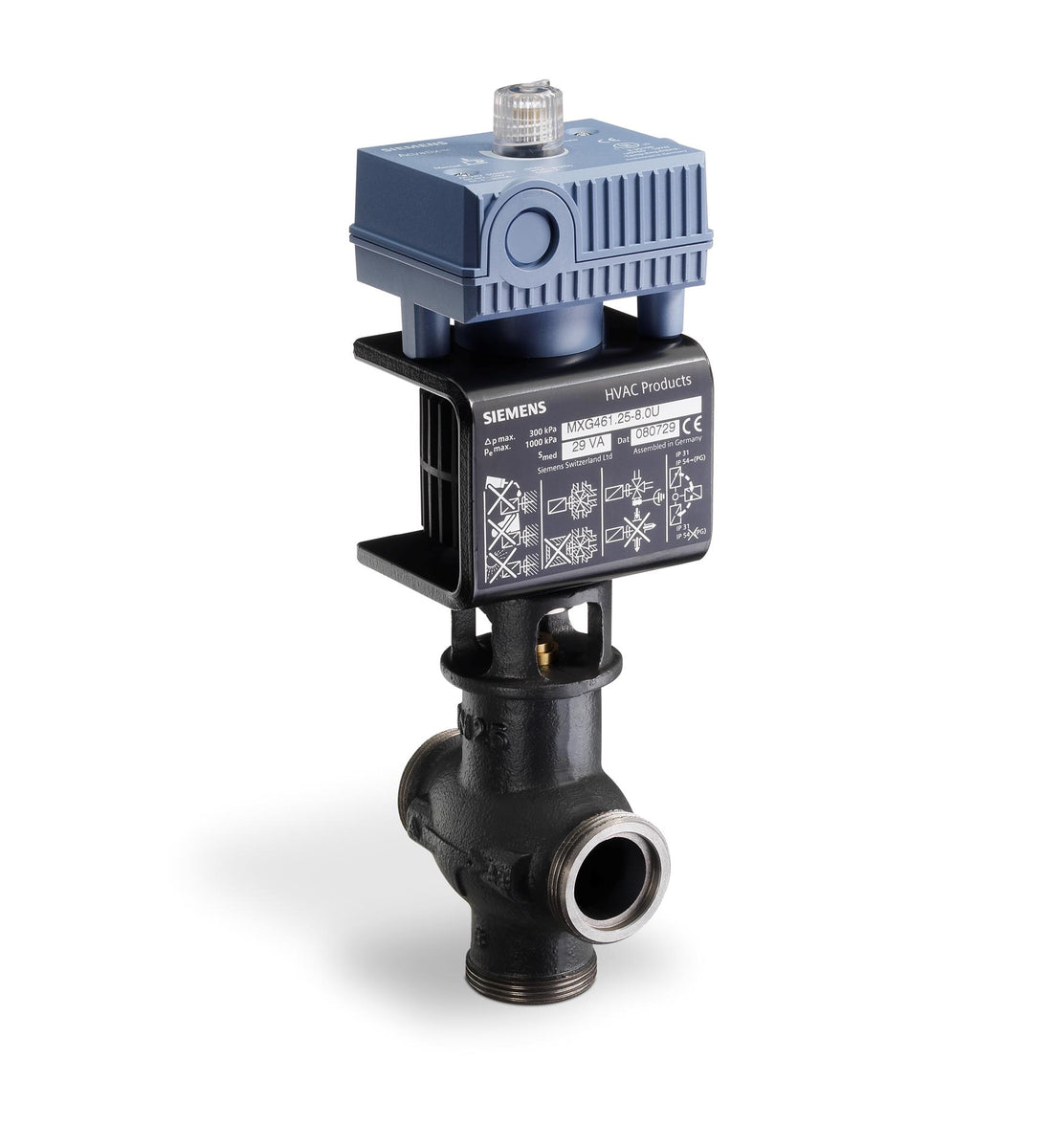

The photo is for representation purposes only and may not be a photo of product being purchased.
5 Meet all the criteria
I prefer closed-loop systems since they react better to external problems. However, it also means that I have to select a valve and actuator that is magnetic for a fast positioning time, high resolution, and rangeability. THe MXG461.25-8.OU from Siemens fit all of those criteria - and the results speak for themselves. Accuracy and efficiency is everything that I could ever ask for and I finally achieved it.

Overview

Details for MXG461.25-8.0U

Magnetic 1" Valve, 2-way or floating, 9.4 Cv, 0 to 10V control, w/ NPT unions

This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This 1" valve can be configured for straight-through or floating applications and has a 9.4 Cv and 43 psi close-off. It has 1000:1 resolution and a positioning time is ? 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and C-UL listed.

Description

Mixing or straight-through valves with magnetic actuators for modulating control of hot and chilled water systems in closed circuits.

Features

  • Fast positioning time (< two seconds), high-resolution stroke (1:1000).
  • Linear or equal-percentage valve characteristic (user-selected).
  • Switch-selectable control signal: 0 to 10 Vdc, 2 to 10 Vdc, or 4 to 20 mA.
  • Wear-free inductive stroke measurement.
  • Low friction, robust, no maintenance required.
  • Fail-safe feature: A ? AB closed when de-energized.
  • Positioning control.
  • Position feedback.
  • Manual control.

Specifications

Item Number MXG461.25-8.0U
Brand Siemens
Control Input Modulating
Control Valves Type Magnetic
CV / GPM 9.3 Cv
Manufacturer Siemens
Spring Return Spring Return
Type Control Valve (Magnetic)
Valve Size 1" - 2 Way
Voltage 24V
