GDE141.1Q | Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 44 lb-in | Siemens

Damper Actuator 44 lb-in 2-position/floating control signal, non-spring return, plenum rated for low torque VAV applications and small dampers.

Brand: SiemensSKU: GDE141.1Q

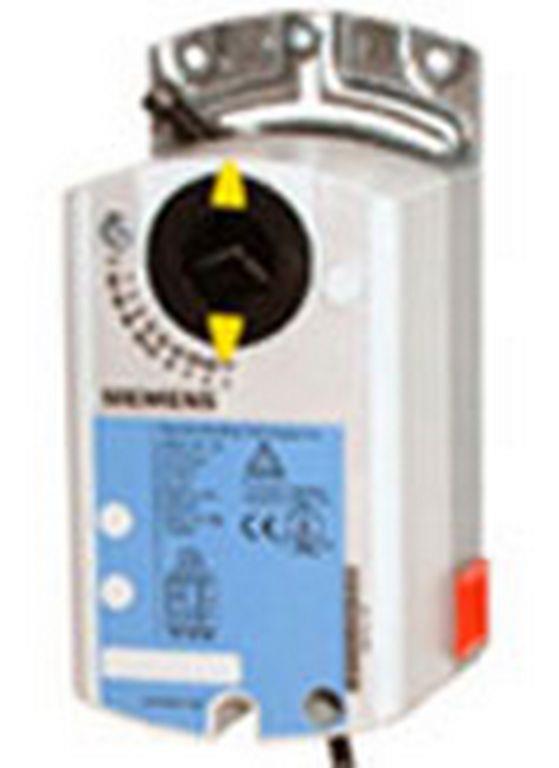

Siemens | GDE141.1Q
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GDE141.1Q
Jump to: Overview & Specifications Reviews

Overview Details for GDE141.1Q

Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 44 lb-in

Damper Actuator 44 lb-in 2-position/floating control signal, non-spring return, plenum rated for low torque VAV applications and small dampers.

Specifications

Control or Fire/Smoke Type
Control Damper
Torque
44 lb-in
Positioning time
50 Hz:108 s, 60 Hz:90 s
Position feedback
No
Power consumption
2.0 VA, 1.0 W
Ambient humidity, operation
95 % r.h.
Angular rotation
90°
Operating voltage
19.2…28.8 V24 V#AC/DC
Frequency
50/60 Hz
Cable length
6 ft
Dimensions (W x H x D)
2.7 x 6.6 x 2.4 in
Material, housing
NEMA 2, IP54 per EN60529, durable plastic
Degree of protection
IP54
