GCA161.1U | Damper Actuator | Spring Return | 24 VAC/DC | 0-10 Vdc | 160 lb-in | Siemens

Siemens | GCA161.1U

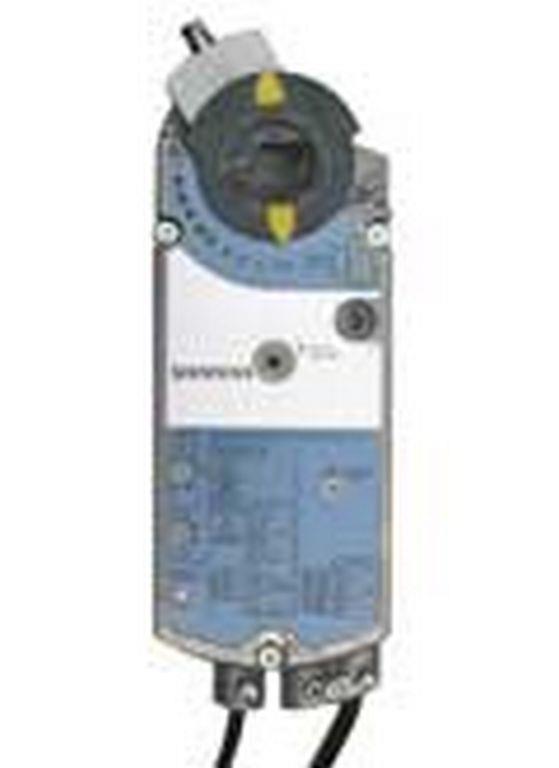

The photo is for representation purposes only and may not be a photo of product being purchased.
4 Electronic Actuator with a Precise Range Adjustment
Had to find energy sufficient and low-maintenance electronic actuator for our facility. My colleague suggested that I should get Siemens. GCA series seems like a perfect choice so far! It has a vast adjustment range and floating control. The device doesnt cost much, and we expect to save even more money because it consumes little energy and doesnt need much maintenance.

Overview

Details for GCA161.1U

Damper Actuator | Spring Return | 24 VAC/DC | 0-10 Vdc | 160 lb-in

OpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 24 Vac/dc, 0 to 10 Vdc control, 90 sec run time

Description

The OpenAir GCA Series spring return, 160 lb-in (18 Nm) electronic damper actuators provide modulating, two-position and floating control of building HVAC dampers.

Features

  • Brushless DC motor technology with stall protection
  • Bi-directional fail-safe spring return
  • Patented self-centering shaft coupling
  • Models available with dual independently adjustable auxiliary switches
  • All modulating models offer built-in feedback
  • Floating control models available with feedback potentiometer
  • All metal housing
  • Manual override
  • 5° preload as shipped from factory
  • Mechanical range adjustment capability by moving shaft coupling to desired position
  • Easily visible position indicator
  • Precabled
  • CE, UL60730, and cUL (C22.2 No. 24-93) listed

Specifications

Item Number GCA161.1U
Brand Siemens
Actuator Type Damper
Control Input Modulating
End Switch
Manufacturer Siemens
Spring Return Spring Return
Torque 160 lb-in
Type Damper Actuator
Voltage 24 VAC/DC
