378-07332 | 378-07332 4 PICV ANSI 125 0-10V NSR | Siemens

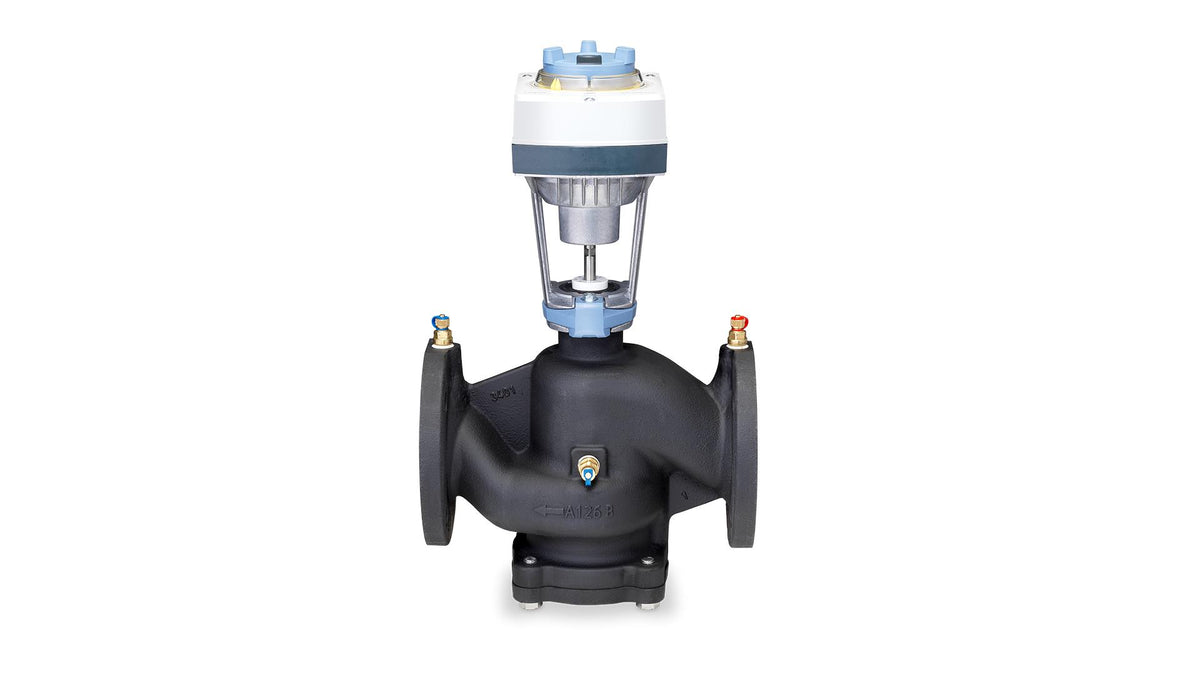

Pressure Independent Control Valve, 4 inch, ANSI 125, 370 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SAV Non-spring Return Actuator, 0-10V or 4-20mA

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 378-07332

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 378-07332 Documents

Datasheet(SAX Electronic Valve Actuator Non Spring Return. 24 Vac. 3-Position Control Technical Instructions)Datasheet(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet)Datasheet(Pressure Independent Control Series. Two-Way Cast Iron Flanged Bodies. ANSI 125 and 250 Technical Instructions)Installation instruction(SAX Electronic Valve Actuator Installation Instructions)Datasheet for Actuator(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet) Installation Instructions More Info

Overview

Details for 378-07332

378-07332 4 PICV ANSI 125 0-10V NSR

Pressure Independent Control Valve, 4 inch, ANSI 125, 370 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SAV Non-spring Return Actuator, 0-10V or 4-20mA

Specifications

Valve Size: 4 in
Port Configuration: 2-Way Normally open
End Connection: Flanged
Material, valve body: Cast Iron
Trim Material: Brass
Material, inside set: Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Flow Characteristic: Linear
Medium: Water , Water with anti-freeze
Max GPM: 370 gpm
Min GPM: 63 gpm
Preset GPM: 370 gpm
Pressure Class: ANSI 125
Leakage rate: Class IV (0.01% of Cv)
Max. Inlet Pressure (absolute), Liquid: 200 psi
Max. Differential Pressure, Liquid: 90 psi
Medium temperature: 34…250 ºF
Stroke: 1-1/2 in., 40 mm
Close-off Pressure: 100 psi
Valve Actuator Type: Electronic
Actuation Style: Linear
Control Signal: Floating control
Fail Safe: No
Supply Voltage: 24 VAC
Positioning time: 30 s
Power consumption: 5 VA
Positioning signal: 0...10 V DC, 4…20 mA
Dimensions (W x H x D): 13.86 x 24.96 x 9 in
