335-04315-25 | PICV, 1-1/2", NO, 25 GPM max flow preset, SAY Actuator, 0-10V or 4-20 mA, NSR | Siemens

Pressure Independent Control Valve, 1-1/2 inch, Normally Open, preset to 25 GPM maximum flow (field adjustable), with 24 Vac Electronic SAY Actuator, 0-10V or 4-20 mA, NSR

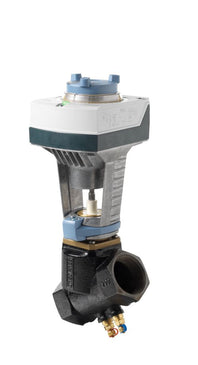

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 335-04315-25

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 335-04315-25 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions)Datasheet(SAY Electronic Valve Actuator Non-spring Return. 24 Vac. Proportional Control Technical Instructions)Installation instruction(SAY Electronic Valve Actuator Installation Instructions)Datasheet for Actuator(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet) Installation Instructions More Info

Overview

Details for 335-04315-25

PICV, 1-1/2", NO, 25 GPM max flow preset, SAY Actuator, 0-10V or 4-20 mA, NSR

Pressure Independent Control Valve, 1-1/2 inch, Normally Open, preset to 25 GPM maximum flow (field adjustable), with 24 Vac Electronic SAY Actuator, 0-10V or 4-20 mA, NSR

Specifications

Valve Type: Two-way
Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Ductile Iron
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 40 gpm
Min GPM: 10 gpm
Preset GPM: 25 gpm
Medium temperature: 34…248 ºF
Stroke: 5/8 in
Valve Actuator Type: Electronic
Actuation Style: Linear
Normally Open/Normally Closed: Normally Open
Supply Voltage: 24 VAC
Positioning time: 30 s
Power consumption: 8 VA
