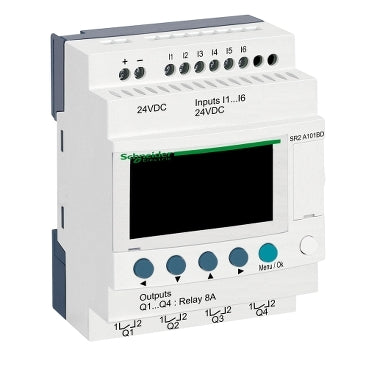

Compact smart relay, Zelio Logic, 10 I/O, 24 V DC, no clock, display

This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 10 inputs / outputs with screw-clamp terminals and has an integrated LCD display. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

Specifications

Range of Product
Zelio Logic
Product or Component Type
Compact smart relay
Local display
With
number or control scheme lines
0…240 ladder
Cycle time
6…90 ms
backup time
10 years 77 °F (25 °C)
clock drift
12 min/year 32…131 °F (0…55 °C), 6 s/month 77 °F (25 °C)
Checks
Program memory on each power up
[Us] rated supply voltage
24 V DC
Supply voltage limits
19.2…30 V
maximum supply current
100 mA without extension)
power dissipation in W
3 W without extension
Reverse polarity protection
With
discrete input number
6 EN/IEC 61131-2 type 1
Discrete input type
Resistive
discrete input voltage
24 V DC
Discrete input current
4 mA
counting frequency
1 kHz discrete input
voltage state 1 guaranteed
>= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit
voltage state 0 guaranteed
<= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit
current state 1 guaranteed
>= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit)
current state 0 guaranteed
<= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit)
input compatibility
3-wire proximity sensors PNP discrete input
Analogue input number
0
input impedance
12 kOhm IB...IG used as analogue input circuit, 12 kOhm IB...IG used as discrete input circuit, 7.4 kOhm I1...IA and IH...IR discrete input circuit
Number of Outputs
4 relay
output voltage limits
24...250 V AC relay output), 5...30 V DC relay output)
contacts type and composition
NO relay output
output thermal current
8 A for all 4 outputs relay output
electrical durability
AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1, AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1
switching capacity in mA
>= 10 mA 12 V relay output)
operating rate in Hz
0.1 Hz at Ie)relay output, 10 Hz no load)relay output
mechanical durability
10000000 cycles relay output
[Uimp] rated impulse withstand voltage
4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Clock
Without
response time
10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
connections - terminals
Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid, Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid, Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid, Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Tightening torque
4.43 lbf.in (0.5 N.m)
overvoltage category
III EN/IEC 60664-1
Net Weight
0.55 lb(US) (0.25 kg)
immunity to microbreaks
1 ms
Product Certifications
CSA, UL, C-tick, GL, GOST
standards
EN/IEC 61000-4-4 level 3, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-3, EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-2 level 3
IP degree of protection
IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel)
environmental characteristic
EMC directive EN/IEC 61000-6-2, EMC directive EN/IEC 61000-6-3, EMC directive EN/IEC 61000-6-4, EMC directive EN/IEC 61131-2 zone B, Low voltage directive EN/IEC 61131-2
disturbance radiated/conducted
Class B EN 55022-11 group 1
pollution degree
2 EN/IEC 61131-2
ambient air temperature for operation
-4…104 °F (-20…40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -4…131 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Operating altitude
6561.68 ft (2000 m)
Maximum altitude transport
10000.00 ft (3048 m)
Relative Humidity
95 % without condensation or dripping water
Category
22378-SR2,3 ZELIO 2 RELAYS
Discount Schedule
I
GTIN
3389110547535
Returnability
Yes
Country of origin
FR
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.76 in (7 cm)
Package 1 Width
3.94 in (10 cm)
Package 1 Length
3.54 in (9 cm)
Package 1 Weight
8.18 oz (232 g)
Unit Type of Package 2
S03
Number of Units in Package 2
30
Package 2 Height
11.81 in (30 cm)
Package 2 Width
11.81 in (30 cm)
Package 2 Length
15.75 in (40 cm)
Package 2 Weight
16.42 lb(US) (7.45 kg)
Warranty
18 months
