PLL34120M70 | Motor circuit protector, PowerPacT P, 1200A, 3 pole, 480VAC, 100kA, lugs, ET1.0l, 80% | Square D

Brand: Square DSKU: PLL34120M70

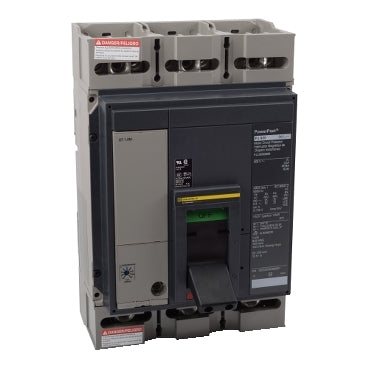

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PLL34120M70

Jump to: Overview & Specifications Reviews

Overview Details for PLL34120M70

Motor circuit protector, PowerPacT P, 1200A, 3 pole, 480VAC, 100kA, lugs, ET1.0l, 80%

This PowerPact P, circuit breaker has a rated currrent of 1200A and a rated operational current of 480VAC. with a breaking capacity of 100 kA@480VAC. This unit mounted breaker is a 3-pole and has a continuous current rating of 80 %. Dimensions for this product are 16.16 in (H), 8.05 in (W), 8.27 in (D). This product comes with an 18 month warranty.

Specifications

Range: PowerPact
Product name: PowerPact P
Product or Component Type: Motor Circuit Protector
Device Application: Distribution
Line Rated Current: 1200 A
Number of Poles: 3P
Control Type: Toggle
Breaking capacity code: L
breaking capacity: AIR 125 kA 240 V AC 50/60 Hz UL 489, AIR 100 kA 480 V AC 50/60 Hz UL 489, AIR 25 kA 600 V AC 50/60 Hz UL 489, Icu 125 kA 240 V AC 50/60 Hz IEC 60947-2, Icu 85 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage: 480 V AC 50/60 Hz UL 489
Network Frequency: 50/60 Hz
[Ics] rated service breaking capacity: 65 kA 240 V AC 50/60 Hz IEC 60947-2, 45 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947-2
trip unit technology: Electronic, basic, ET 1.0, I
[Ith] conventional free air thermal current: 1200 A
Magnetic tripping current: 1800…10000 A
Continuous current rating: 80 %
[Ui] rated insulation voltage: 750 V IEC 60947-2
Trip unit name: ET 1.0
AWG gauge: 4 x AWG 3/0...500 kcmil aluminium/copper
local signalling: 1 trip indicator green)
mounting mode: Unit mount lug)
Mounting Support: Lug
electrical connection: Lugs line, Lugs load
Terminal identifier: AL1200P25K
Long time pick-up adjustment range: 1 In
tightening torque: 442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (4 x AWG 3/0...500 kcmil)
number of slots: 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)
Power wire stripping length: 1.18 in (30 mm)
Height: 16.16 in (410.46 mm)
Width: 8.27 in (210.06 mm)
Depth: 8.05 in (204.47 mm)
Net Weight: 32 lb(US) (14.51 kg)
Quantity per Set: 1
Circuit breaker application: HACR rated
Quality labels: CE
standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
product certifications: UL, CSA, NOM
IP degree of protection: Front cover IP40
pollution degree: 3 IEC 60947-1
Ambient Air Temperature for Operation: 28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage: -58…185 °F (-50…85 °C)
operating altitude: < 6561.68 ft (2000 m) without derating, 13123.36 ft (4000 m) with derating
Category: 01215-PG,H,J,K,L,N UNIT MT BREAKERS
Discount Schedule: DE2
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Warranty: 18 months
