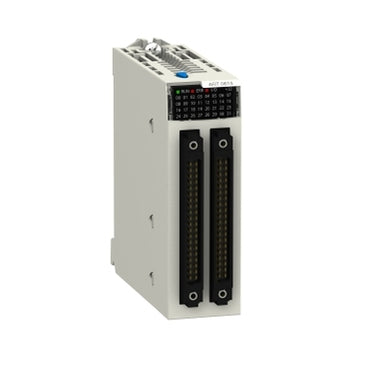

BMXART0814 | analog input module X80 - 8 inputs - temperature | Square D by Schneider Electric

Brand: Square DSKU: BMXART0814

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMXART0814

Jump to: Overview & Specifications Reviews

Overview Details for BMXART0814

analog input module X80 - 8 inputs - temperature

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a current consumption of 150mA at 3.3V DC. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Range of Product: Modicon X80
Product or Component Type: Analog input module
electrical connection: 40 ways 2 connectors
Isolation between channels: Isolated
Input level: Low level
Analogue input number: 8
analogue input type: Voltage +/- 1.28 V, Voltage +/- 160 mV, Voltage +/- 320 mV, Voltage +/- 40 mV, Voltage +/- 640 mV, Voltage +/- 80 mV, Resistor 400 Ohm 2 wires, Resistor 400 Ohm 3 wires, Resistor 400 Ohm 4 wires, Resistor 4000 Ohm 2 wires, Resistor 4000 Ohm 3 wires, Resistor 4000 Ohm 4 wires, Temperature probe -100...+260 °C Cu 10, Temperature probe -100...+450 °C Pt 100 UL/JIS, Temperature probe -100...+450 °C Pt 1000 UL/JIS, Temperature probe -200...+850 °C Pt 100 IEC, Temperature probe -200...+850 °C Pt 1000 IEC, Temperature probe -60...+180 °C Ni 100, Temperature probe -60...+180 °C Ni 1000, Thermocouple +130...+1820 °C thermocouple B, Thermocouple +270...+1300 °C thermocouple N, Thermocouple -200...+600 °C thermocouple U, Thermocouple -200...+760 °C thermocouple J, Thermocouple -200...+900 °C thermocouple L, Thermocouple -270...+1000 °C thermocouple E, Thermocouple -270...+1370 °C thermocouple K, Thermocouple -270...+400 °C thermocouple T, Thermocouple -50...+1769 °C thermocouple R, Thermocouple -50...+1769 °C thermocouple S
Analog/digital conversion: Sigma delta 16 bits
analogue input resolution: 15 bits + sign
permitted overload on inputs: +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV
common mode rejection: 120 dB 50/60 Hz
differential mode rejection: 60 dB 50/60 Hz
Cold junction compensation: External by Pt100 probe
Type of filter: First order digital filtering
Nominal read cycle time: 400 ms with temperature probe, 200 ms with thermocouple
measurement error: +/- 0.7 °C Ni 1000 25 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 25 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, 0.05 % of full scale +/- 1.28 V 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.12 % of full scale 4000 Ohm 25 °C, <= 0.2 % of full scale +/- 40 mV 0...60 °C, <= 0.3 % of full scale 400 Ohm 0...60 °C, 1.3 °C Ni 1000 0...60 °C
temperature drift: 25 ppm/°C 400 Ohm, 25 ppm/°C 4000 Ohm, 25 ppm/°C Ni 1000, 25 ppm/°C thermocouple B, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple U, 30 ppm/°C +/- 1.28 V, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 80 mV, 30 ppm/°C Cu 10, 30 ppm/°C Ni 100, 30 ppm/°C Pt 100, 30 ppm/°C Pt 1000
Recalibration: Internal
detection type: Open circuit Cu 10, Open circuit Ni 100, Open circuit Ni 1000, Open circuit Pt 100, Open circuit Pt 1000, Open circuit thermocouple B, Open circuit thermocouple E, Open circuit thermocouple J, Open circuit thermocouple K, Open circuit thermocouple L, Open circuit thermocouple N, Open circuit thermocouple R, Open circuit thermocouple S, Open circuit thermocouple T, Open circuit thermocouple U
maximum wiring resistance: 20 Ohm 2 wires Cu 10, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Pt 100, 20 Ohm 3 wires Cu 10, 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Pt 100, 200 Ohm 2 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 200 Ohm 3 wires Ni 1000, 200 Ohm 3 wires Pt 1000, 50 Ohm 4 wires Cu 10, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Pt 100, 500 Ohm 4 wires Ni 1000, 500 Ohm 4 wires Pt 1000
measurement resolution: 0.1 °C Cu 10, 0.1 °C Ni 100, 0.1 °C Ni 1000, 0.1 °C Pt 100, 0.1 °C Pt 1000, 0.1 °C thermocouple B, 0.1 °C thermocouple E, 0.1 °C thermocouple J, 0.1 °C thermocouple K, 0.1 °C thermocouple L, 0.1 °C thermocouple N, 0.1 °C thermocouple R, 0.1 °C thermocouple S, 0.1 °C thermocouple T, 0.1 °C thermocouple U, 1280/2exp14 mV +/- 1.28 V, 160/2exp14 mV +/- 160 mV, 320/2exp14 mV +/- 320 mV, 40/2exp14 mV +/- 40 mV, 12.5 mOhm 400 Ohm, 125 mOhm 4000 Ohm, 640/2exp14 mV +/- 640 mV, 80/2exp14 mV +/- 80 mV
maximum conversion value: +/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV
operating altitude: 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
status LED: 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
Net Weight: 0.36 lb(US) (0.165 kg)
current consumption: 150 mA 3.3 V DC
vibration resistance: 3 gn
shock resistance: 30 gn
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
relative humidity: 5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection: IP20
Directives: 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product Certifications: CE, EAC, UL, CSA, Merchant Navy, RCM
standards: EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
environmental characteristic: 3C3 EN/IEC 60721-3-3, 3C4 EN/IEC 60721-3-3
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3595863966794
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.13 in (5.4 cm)
Package 1 Width: 4.33 in (11.0 cm)
Package 1 Length: 4.61 in (11.7 cm)
Package 1 Weight: 7.41 oz (210.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 15
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 7.54 lb(US) (3.42 kg)
Warranty: 18 months
