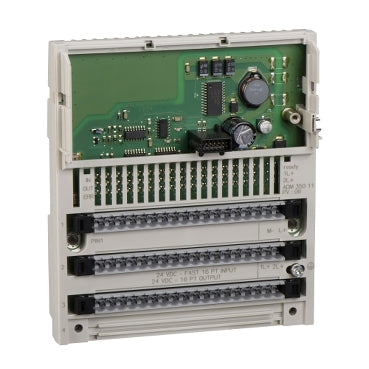

170ADM35010 | discrete I/O module Modicon Momentum - 16 I/O solid state | Square D by Schneider Electric

Brand: Square DSKU: 170ADM35010

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 170ADM35010

Jump to: Overview & Specifications Reviews

Overview Details for 170ADM35010

discrete I/O module Modicon Momentum - 16 I/O solid state

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups of 8 solid state outputs with sink (positive) discrete logic. It is an I/O module with a rated supply voltage of 24V DC, an input/output voltage of 24V DC, a current consumption of 250mA at 24V DC and a power dissipation of 8W. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height) and weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Range of Product: Modicon Momentum automation platform
Product or Component Type: Discrete solid state I/O base DC
Group of channels: 2 groups of 8 outputs, 1 group of 16 inputs
discrete input number: 16 IEC 1131-2 Type 1
Discrete input logic: Positive
discrete input voltage: 24 V DC
Discrete output number: 16
Discrete output type: Solid state switch
discrete output voltage: <= 30 V DC, 24 V DC
Discrete output logic: Positive
Protective treatment: TC
[Us] rated supply voltage: 24 V DC
Input voltage limits: - 3...30 V
voltage state 0 guaranteed: -3...5 V
voltage state 1 guaranteed: 11...30 V
Current state 0 guaranteed: <= 1.2 mA
current state 1 guaranteed: >= 2.5 mA
Input resistance: 4 kOhm
discrete output current: 4 A per group, 8 A per module, 0.5 A per point
maximum leakage current: 1 mA 24 V output circuit)
Peak output current: 5 A
maximum voltage drop: <0.5 V 0.5 A at state 1 output circuit
Fault type: Overload on output
response time: < 0.1 ms from state 0 to state 1 on output, < 0.1 ms from state 1 to state 0 on output, 2.2 ms from state 0 to state 1 on input, 3.3 ms from state 1 to state 0 on input
Isolation between channels and bus: 500 V AC
Power dissipation: 6 W, <= 8 W
Marking: CE
Terminals description PLC n°1: (L+)PW_POS, (8)IN_DIS#8, (6)IN_DIS#6, (5)IN_DIS#5, TB, (2)IN_DIS#2, (12)IN_DIS#12, (M-)PW_NEG, (15)IN_DIS#15, (13)IN_DIS#13, (10)IN_DIS#10, (3)IN_DIS#3, (9)IN_DIS#9, (7)IN_DIS#7, (1)IN_DIS#1, (11)IN_DIS#11, (14)IN_DIS#14, (16)IN_DIS#16, (4)IN_DIS#4
Terminals description PLC n°2: (10)OUT_DIS#10, (6)OUT_DIS#6, (8)OUT_DIS#8, (1)OUT_DIS#1, (11)OUT_DIS#11, (4)OUT_DIS#4, (5)OUT_DIS#5, (15)OUT_DIS#15, (2L+)PW_POS, TB_1, (7)OUT_DIS#7, (2)OUT_DIS#2, (14)OUT_DIS#14, (9)OUT_DIS#9, (13)OUT_DIS#13, (3)OUT_DIS#3, (1L+)PW_POS, (12)OUT_DIS#12
local signalling: for channel status 16 LEDs
current consumption: 250 mA 24 V DC
Depth: 1.87 in (47.5 mm)
Height: 5.57 in (141.5 mm)
Width: 4.92 in (125 mm)
Net Weight: 0.44 lb(US) (0.2 kg)
Product Certifications: UL, CSA
resistance to electrostatic discharge: 4 kV contact IEC 801-2, 8 kV on air IEC 801-2
resistance to electromagnetic fields: 9.14 V/m (10 V/m) 80...1000 MHz IEC 801-3
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Relative Humidity: 95 % without condensation
Operating altitude: <= 16404.2 ft (5000 m)
Category: 18206-MOMENTUM PROCESSORS,I/O BASES,CONN.
Discount Schedule: PC31
GTIN: 3595861000261
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.28 in (5.8 cm)
Package 1 Width: 7.09 in (18.0 cm)
Package 1 Length: 10.16 in (25.8 cm)
Package 1 Weight: 13.83 oz (392.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 10
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 9.72 lb(US) (4.407 kg)
Warranty: 18 months
