VSU-630C-E25D-L-15 | VB: 5 in, 3W Mix/Div, BFV, FLG, Under, FE, 1376 cv, 50 PSI; Act (BRY-NR-2224-541+BRY-NR-2224-541): Elec, Prop, NSR, 24 VAC, TB, 210 in-lb, Dual act | Schneider Electric

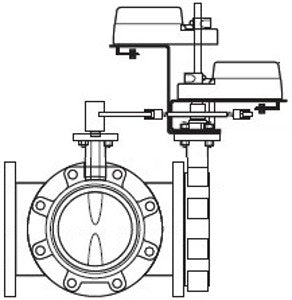

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VSU-630C-E25D-L-15
Overview
Details for VSU-630C-E25D-L-15
VB: 5 in, 3W Mix/Div, BFV, FLG, Under, FE, 1376 cv, 50 PSI; Act (BRY-NR-2224-541+BRY-NR-2224-541): Elec, Prop, NSR, 24 VAC, TB, 210 in-lb, Dual act
Valve Assembly:- Body Size: 5 in
- Configuration: 3-Way Mixing/Diverting
- Type: Butterfly
- Connection: Flanged
- Body Style: Lug
- Disc Shape: Undercut
- Material Disc: Ductile Iron - Nylon 11 Coated
- Flow Coefficient: 1376 cv
- Close-Off Pressure: 50 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC/VDC
- Leads and Connections: Terminal Block
- Torque: 210 in-lb
- Mechanical Movement: Rotary
- Additional Features: Dual actuator
- Protection Rating: NEMA 2
- Valve Body: VBU-6301-0-L-15
- Valve Linkage: Included with assembly
- Actuator: BRY-NR-2224-541+BRY-NR-2224-541
Product Alert: Not for use with steam.
Specifications
| Item Number | VSU-630C-E25D-L-15 |
| Brand | Schneider Electric |
| freeship | upsground |
