VS-2253-505-9-04 | VB: 1/2 in, 2W, Ball, NPT, SS, 2.6 cv, 130 PSI; Act (MS41-6043): Elec, Prop, 0-10 VDC, NSR, 24 VAC, Plen, 35 in-lb, Rotary, N2 | Schneider Electric

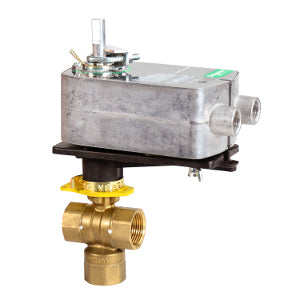

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-2253-505-9-04
Overview
Details for VS-2253-505-9-04
VB: 1/2 in, 2W, Ball, NPT, SS, 2.6 cv, 130 PSI; Act (MS41-6043): Elec, Prop, 0-10 VDC, NSR, 24 VAC, Plen, 35 in-lb, Rotary, N2
Valve Assembly:- Body Size: 1/2 in
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Stainless Steel
- Flow Coefficient: 2.6 cv
- Control Media: Glycol 25-50% and Water
- Close-Off Pressure: 130PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC
- Loss of Power Type: Non-Spring Return
- Power Input Voltage: 24 VAC
- Leads and Connections: 3 ft Plenum
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: Mx4x-6xxx
- Actuator Use: Dampers, Globe Valves
Assembly Components:
- Valve Body: VB-2253-500-9-04
- Actuator: MS41-6043
- Actuator Range: SmartX Actuator
Specifications
| Item Number | VS-2253-505-9-04 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Ball Valve |
| CV / GPM | 2.6 Cv |
| End Switch | No |
| Housing | NEMA 2 |
| Spring Return | Non-Spring Return |
| Valve Size | 0.5" - 2 Way |
| Voltage | 24V |
