VT2343G13A02A0F | VB: 3/4 in, 2W, Zone, FLR, BR, 3.5 cv, 25 PSI; Act (AG13A02A0F): Elec, 2Pos, SR, NC, 24 VAC, App, SPDT, N1 | Schneider Electric

Brand: Schneider ElectricSKU: VT2343G13A02A0F

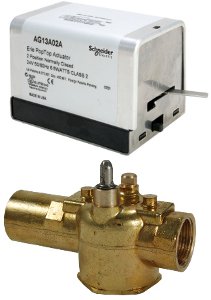

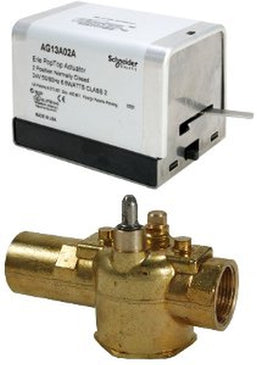

Schneider Electric | VT2343G13A02A0F
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VT2343G13A02A0F

Overview Details for VT2343G13A02A0F

VB: 3/4 in, 2W, Zone, FLR, BR, 3.5 cv, 25 PSI; Act (AG13A02A0F): Elec, 2Pos, SR, NC, 24 VAC, App, SPDT, N1

Valve Assembly:
  • Body Size: 3/4 in
  • Configuration: 2-Way
  • Type: Zone
  • Connection: Flare
  • Material Trim: Brass
  • Flow Coefficient: 3.5 cv
  • Control Media: Glycol 25 to 50% and Water
  • Product Line: Schneider Electric
  • Product Range: Erie PopTop
  • Product Series: VT2
Product Alert: Not for use with steam
  • Close-Off Pressure: 25 PSI
  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 24 VAC
  • Leads and Connections: 18 in Appliance
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 1 SPDT
  • Protection Rating: NEMA 1
  • Assembly Components:
    • Valve Body: VT2343
    • Valve Linkage: None, tool-less connection
    • Actuator: AG13A02A0F
    • Actuator Range: Erie PopTop

    Product Alert: Not for use with steam Erie™ PopTop™ Series valve bodies and actuators provide easy installation for a variety of heating and cooling applications. Valve’s actuator can be installed after valve body has been installed onto fan coil, baseboard or air handler. VS Series valves are available for low pressure steam applications.

    Specifications

    Item Number VT2343G13A02A0F
    Brand Schneider Electric
    Control Input On/Off
    Control Valves Type Zone Valve
    CV / GPM 3.5 Cv
    End Switch Yes
    Housing NEMA 1
    Spring Return Spring Return
    Valve Size 0.75" - 2 Way
    Voltage 24V
