VFF-630C-E25-L-12 | VB: 2-1/2 in, 3W Mix/Div, BFV, FLG, Full, FE, 282 cv, 175 PSI; Act (BRY-NR-2224-521): Elec, Float, NSR, 24 VAC/VDC, TB, 210 in-lb | Schneider Electric

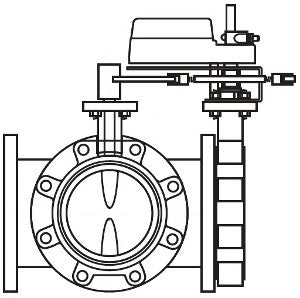

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VFF-630C-E25-L-12
Overview
Details for VFF-630C-E25-L-12
VB: 2-1/2 in, 3W Mix/Div, BFV, FLG, Full, FE, 282 cv, 175 PSI; Act (BRY-NR-2224-521): Elec, Float, NSR, 24 VAC/VDC, TB, 210 in-lb
Valve Assembly:- Body Size: 2-1/2 in
- Configuration: 3-Way Mixing/Diverting
- Type: Butterfly
- Connection: Flanged
- Body Style: Lug
- Disc Shape: Full
- Material Disc: Ductile Iron - Nylon 11 Coated
- Flow Coefficient: 282 cv
- Close-Off Pressure: 175 PSI
- Actuator Type: Electric
- Control Signal: Floating
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC/VDC
- Leads and Connections: Terminal Block
- Torque: 210 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Valve Body: VBF-6301-0-L-12
- Valve Linkage: Included with assembly
- Actuator: BRY-NR-2224-521
Product Alert: Not for use with steam.
Specifications
| Item Number | VFF-630C-E25-L-12 |
| Brand | Schneider Electric |
