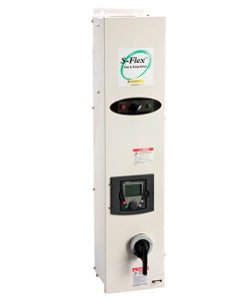

S-Flex 212 VFD: 25 HP, NEMA 1, 460V, Without Bypass, LCD Text Keypad

S-Flex AC drives are packaged adjustable speed drive solutions with an AC line disconnect. The S-Flex utilizes the Altivar 212 drive chassis mounted in a ferrous metal enclosure, reducing Radio Frequency Interference (RFI).

Some models are normally in stock for quick delivery. Contact Customer Care to check stock availability. Additional option combinations can be confugured using the VFDselect tool. Download from iPortal, Links, Selection Tools.

Standard Features:

• NEMA Type 1 Enclosure, Very Narrow Construction
• Circuit Breaker Disconnect, Thru Door, Pad Lockable
• Basic LED display and keypad, Door mounted
• Fused control power transformer, 120vac Secondary
• Meets I/O requirements for typical HVAC applications
• Local/Remote button, Power On light, VFD Run contact & Fault contact
• Integrated Modbus RS-485, BACnet MSTP, Apogee P1 and Metasys N2. (Selectable)
• Pre-programmed for typical HVAC applications
• Programmable by free software (Need optional cable kit)
• Fire/Safety interlock in VFD & optional Bypass mode
• Smoke purge (Fireman's override) function-selectable
• Bottom conduit knock-outs for easy installation
• UL508C Listed and Coordinated with NEMA ICS 7.1, NEC 2005 Article 409 compliant
• 100kA short circuit current rating on VFD & optional Bypass
• RHT (Reduced Harmonic Technology) eliminates the need for a line reactor in most applications

SQD-SFD212LG4WD07 Features:

• Horsepower: 25 HP
• Enclosure Rating: NEMA 1
• Voltage Rating: 460V
• Bypass: Without Bypass
• Communication Options: None
• Misc. Option(s): D07 = LCD Text Keypad
