NSYS3DC12840 | WM S3DC PLAIN DOOR W/O PLAIN CHASSIS, W/O CABLE GLAND PLATE, H1200XW800XD400MM. | Square D

Brand: Square DSKU: NSYS3DC12840

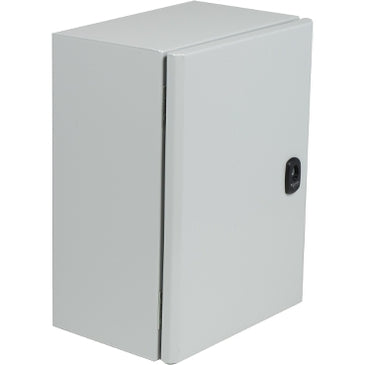

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYS3DC12840

Jump to: Overview & Specifications Reviews

Overview Details for NSYS3DC12840

WM S3DC PLAIN DOOR W/O PLAIN CHASSIS, W/O CABLE GLAND PLATE, H1200XW800XD400MM.

Specifications

range: Spacial
product name: Spacial S3DC
Application: Multi-purpose
Category: Compact enclosure
enclosure nominal height: 47.24 in (1200 mm)
enclosure nominal width: 31.50 in (800 mm)
enclosure nominal depth: 15.75 in (400 mm)
door type: Solid
mounting plate description: Without mounting plate
type of gland plate: Without gland plate
installation accessory type: Wall-mounting
device composition: 1 body;1 door;1 lock
body type: Gutter-shaped front profile double sheet thickness;Single piece body
number of doors: Front face 1
door opening side: Reversible 120 °)
lock type: 3 points lock;screw driver insert
accessibility for operation: Front
removable parts: Door by hinges
material: steel
surface finish: epoxy-polyester powder
color: Gray RAL 7035)
Standards: IEC 62208
Product Certifications: UL
Net Weight: 110.23 lb(US) (50 kg)
NEMA Degree of Protection: NEMA 4X/13
IK degree of protection: IK10 IEC 62262
IP degree of protection: IP66 IEC 60529
Category: 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule: ES1
GTIN: 3606480314254
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 17.72 in (45.0 cm)
Package 1 Width: 32.28 in (82.0 cm)
Package 1 Length: 51.57 in (131.0 cm)
Package 1 Weight: 110.23 lb(US) (50.0 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 2
Package 2 Height: 57.09 in (145.0 cm)
Package 2 Width: 32.28 in (82.0 cm)
Package 2 Length: 47.24 in (120.0 cm)
Package 2 Weight: 249.12 lb(US) (113.0 kg)
Warranty: 18 months
