NSYPLM3025G | Wall-mounting enclosure polyester monobloc IP66 H308xW255xD160mm | Square D

Brand: Square DSKU: NSYPLM3025G

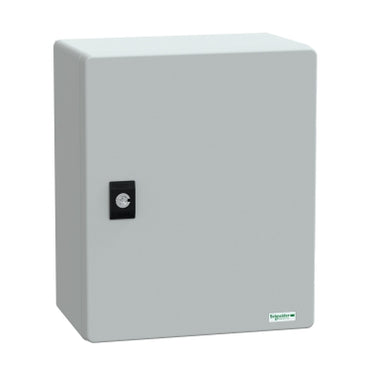

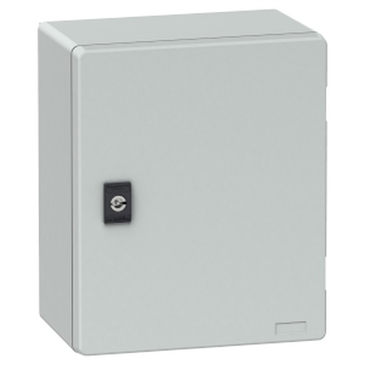

Square D | NSYPLM3025G
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NSYPLM3025G
Jump to: Overview & Specifications Reviews

Overview Details for NSYPLM3025G

Wall-mounting enclosure polyester monobloc IP66 H308xW255xD160mm

Thalassa PLM wall-mounting polyester enclosure monobloc. 308 x 255 x 160 mm. Single piece body. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

Specifications

range
Thalassa
product name
Thalassa PLM
device short name
PLM
Enclosure type
Multi-purpose
Category
Compact enclosure
Nominal height
12.13 in (308 mm)
Nominal width
10.04 in (255 mm)
Nominal depth
6.30 in (160 mm)
enclosure mounting
Wall mounted
device composition
1 body;1 door;1 lock
door type
Solid
lock type
3 mm double-bar lock
number of locks
1
mounting plate description
Without mounting plate
accessibility for operation
Front
removable parts
Door by hinges
material
polyester reinforced with fibreglass
color
Gray RAL 7035)
Standards
IEC 62208;NEMA classification 13;NEMA classification 4X
Product Certifications
UL
Electrical Insulation Class
Class II
IP degree of protection
IP66 IEC 60529
IK degree of protection
IK10 IEC 62262
fire resistance
1760 °F (960 °C) IEC 62208
Ambient air temperature for operation
-40…176 °F (-40…80 °C)
Category
80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule
ES1
GTIN
3606480776434
Returnability
Yes
Country of origin
ES
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.28 in (18.5 cm)
Package 1 Width
10.43 in (26.5 cm)
Package 1 Length
12.80 in (32.5 cm)
Package 1 Weight
7.53 lb(US) (3.414 kg)
