LC1D40B7 | TeSys D Contactor, 3-Poles (3 NO), 40A, 24V AC Coil, Non-Reversing | Square D by Schneider Electric

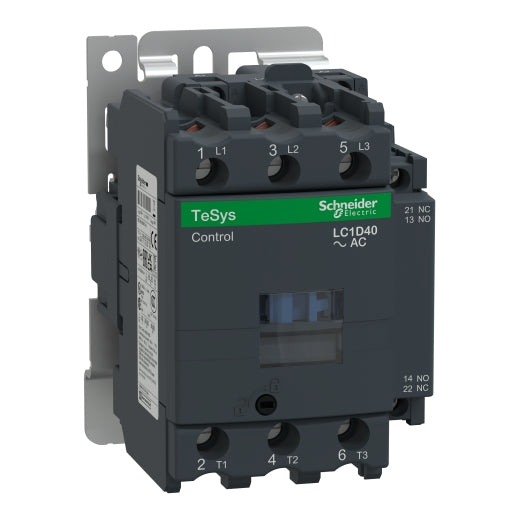

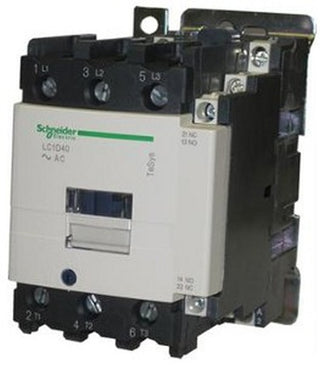

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1D40B7
Overview
Details for LC1D40B7
TeSys D Contactor, 3-Poles (3 NO), 40A, 24V AC Coil, Non-Reversing
TeSys Deca contactor, 3 poles (3NO),for motor control applications 40A/690V,AC-3 30kW@690V. and for non-inductive load control applications up to 80A@60℃ in category AC-1. It provides a 24V 50/60Hz AC coil,1NO/1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN), Green Premium compliant (RoHS/REACh).Specifications
- Range
- TeSys
- Range of product
- TeSys Deca
- Product or component type
- Contactor
- device short name
- LC1D
- contactor application
- Motor control
Resistive load - Utilisation category
- AC-3
AC-4
AC-2
AC-1
AC-3e - Poles description
- 3P
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
- [Ie] rated operational current
- 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit - [Uc] control circuit voltage
- 24 V AC 50/60 Hz
- Motor power kW
- 18.5 kW at 380...400 V AC 50 Hz (AC-3)
22 kW at 500 V AC 50 Hz (AC-3)
30 kW at 660...690 V AC 50 Hz (AC-3)
22 kW at 1000 V AC 50 Hz (AC-3)
22 kW at 415 V AC 50 Hz (AC-3)
22 kW at 440 V AC 50 Hz (AC-3)
11 kW at 220...230 V AC 50 Hz (AC-3)
9 kW at 400 V AC 50 Hz (AC-4)
18.5 kW at 380...400 V AC 50 Hz (AC-3e)
22 kW at 500 V AC 50 Hz (AC-3e)
30 kW at 660...690 V AC 50 Hz (AC-3e)
22 kW at 1000 V AC 50 Hz (AC-3e)
22 kW at 415 V AC 50 Hz (AC-3e)
22 kW at 440 V AC 50 Hz (AC-3e)
11 kW at 220...230 V AC 50 Hz (AC-3e) - Motor power hp
- 3 hp at 115 V AC 60 Hz for 1 phase motors
5 hp at 230/240 V AC 60 Hz for 1 phase motors
10 hp at 200/208 V AC 60 Hz for 3 phases motors
10 hp at 230/240 V AC 60 Hz for 3 phases motors
30 hp at 460/480 V AC 60 Hz for 3 phases motors
30 hp at 575/600 V AC 60 Hz for 3 phases motors - Compatibility code
- LC1D
- Pole contact composition
- 3 NO
- Protective cover
- With
- [Ith] conventional free air thermal current
- 10 A (at 60 °C) for control circuit
60 A (at 60 °C) for power circuit - Irms rated making capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
140 A AC for control circuit conforming to IEC 60947-5-1 - Rated breaking capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
- Associated fuse rating
- 10 A gG for control circuit conforming to IEC 60947-5-1
80 A gG at <= 690 V coordination type 1 for power circuit
80 A gG at <= 690 V coordination type 2 for power circuit - Power dissipation per pole
- 5.4 W AC-1
2.4 W AC-3
2.4 W AC-3e - [Ui] rated insulation voltage
- Control circuit: 600 V CSA certified
Control circuit: 600 V UL certified
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Control circuit: 690 V conforming to IEC 60947-1
Power circuit: 690 V conforming to IEC 60947-1 - Overvoltage category
- III
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947
- Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 - Mechanical durability
- 6000000 cycles
- Control circuit type
- AC at 50/60 Hz
- Coil technology
- Without built-in bidirectional peak limiting diode suppressor
- Control circuit voltage limits
- 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 Hz - Inrush power in VA
- 140 VA cos phi 0.75 (at 20 °C)
160 VA cos phi 0.75 (at 20 °C) - Hold-in power consumption in VA
- 13 VA 60 Hz cos phi 0.3 (at 20 °C)
15 VA 50 Hz cos phi 0.3 (at 20 °C) - Heat dissipation
- 4…5 W at 50/60 Hz for control circuit
- Operating time
- 4...19 ms opening
12...26 ms closing - Maximum operating rate
- 3600 cyc/h 60 °C
- Connections - terminals
- Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: rigid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: rigid
Power circuit: screw terminals 2 2.5…16 mm² - cable stiffness: rigid
Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: flexible without cable end
Power circuit: screw terminals 2 2.5…16 mm² - cable stiffness: flexible without cable end
Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end
Power circuit: screw terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end - Tightening torque
- Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2
Power circuit: 5 N.m - on screw terminal - with screwdriver flat Ø 6 to Ø 8 mm
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver pozidriv No 2 - auxiliary contact composition
- 1 NO + 1 NC
- Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1 - Minimum switching voltage
- 17 V for control circuit
- Minimum switching current
- 5 mA for control circuit
- Insulation resistance
- > 10 MOhm for control circuit
- Non-overlap time
- 1.5 ms on de-energisation between NC and NO contacts
1.5 ms on energisation between NC and NO contacts - Mounting support
- Rail
Plate - Standards
- EN 60947-5-1
IEC 60947-5-1
EN 60947-4-1
IEC 60947-4-1
CSA C22.2 No 14
UL 508 - product certifications
- LROS (Lloyds register of shipping)
DNV
RINA
CSA
GL
UL
CCC
BV
GOST
UKCA - IP degree of protection
- IP2X conforming to IEC 60529
IP2X conforming to VDE 0106 - Climatic withstand
- conforming to IACS E10 exposure to damp heat
- Operating altitude
- 0...3000 m
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Flame retardance
- V1 conforming to UL 94
- Mechanical robustness
- Shocks contactor opened (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
Vibrations contactor opened (2 Gn, 5...300 Hz)
Vibrations contactor closed (4 Gn, 5...300 Hz) - Height
- 127 mm
- Width
- 75 mm
- Depth
- 119 mm
- Net weight
- 1.4 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 14.0 cm
- Package 1 Width
- 13.3 cm
- Package 1 Length
- 9.5 cm
- Package 1 Weight
- 1.445 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 5
- Package 2 Height
- 15 cm
- Package 2 Width
- 30 cm
- Package 2 Length
- 40 cm
- Package 2 Weight
- 7.527 kg
- Warranty
- 18 months
