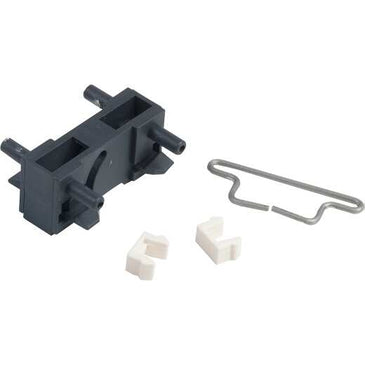

LAD9V2 | Mechanical interlock, TeSys D contactors LC1D09-D38 LC1DT20-DT40 | Square D by Schneider Electric

Brand: Square DSKU: LAD9V2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LAD9V2

Jump to: Overview & Specifications Reviews

Overview Details for LAD9V2

Mechanical interlock, TeSys D contactors LC1D09-D38 LC1DT20-DT40

TeSys Deca mechanical interlock, for contactors LC1D09-D38 and LC1DT20-DT40. To be used for reversing and changeover assemblings. Without electrical interlocking. Green Premium compliant (RoHS/REACh).

Specifications

Range of product: TeSys Deca
Range: TeSys
device short name: LAD9
Product or component type: Mechanical interlock
accessory / separate part category: Interlocking accessory
Interlocking type: Mechanical
Poles description: 3P
4P
electrical circuit type: Reversing
Changeover
Range compatibility: TeSys (TeSys D) contactor
Product compatibility: LC1D09
LC1D12
LC1D18
LC1D25
LC1D32
LC1D38
LC1DT20
LC1DT25
LC1DT32
LC1DT40
Net weight: 0.04 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2 cm
Package 1 Width: 8 cm
Package 1 Length: 11.1 cm
Package 1 Weight: 10 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 9.5 cm
Package 2 Width: 10 cm
Package 2 Length: 15.2 cm
Package 2 Weight: 138 g
Unit Type of Package 3: S03
Number of Units in Package 3: 140
Package 3 Height: 30 cm
Package 3 Width: 30 cm
Package 3 Length: 40 cm
Package 3 Weight: 2.359 kg
Warranty: 18 months
