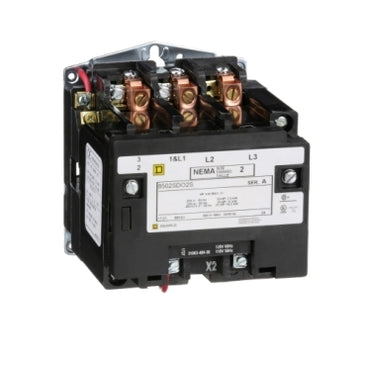

Class 8502 Type S Magnetic Contactor, Not Rated, 45A, 3-Poles, 110 VAC 50HZ, 120 VAC 60Hz, Non-Reversing

Class 8502 Type S Full Voltage Magnetic Contactor:
  • Non-Reversing
  • NEMA Size: 2
  • NEMA Degree of Protection: Not Rated
  • Line Rated Current: 45A
  • Rated Power in Horsepower: 25 HP 575 VAC, 15 HP 230 VAC, 10 HP 200VAC, 25 HP 460 VAC
  • Phase: 3-Phase
  • Number of Poles: 3-Pole
  • Control Circuit: Separate Control Circuit
  • Control Circuit Voltage: 110 VAC 50HZ, 120 VAC 60Hz
  • Mounting: Surface
  • System Voltage: 600VAC
  • Electrical Connection: Screw Clamp Terminals
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

Specifications

Product Type
Contactor
Product Range
8502S
Contactor Type
Non-reversing
NEMA Size
2
Rated Current
45 A
Number of Poles
3P
Maximum Voltage Rating
600 V AC
Phase
3 phase
Horsepower Rating
10 HP 200 V AC;15 HP 230 V AC;25 HP 460 V AC;25 HP 575 V AC
SCCR
Circuit-breaker 100 A maximum;SCCR: 100 kA at 480 V AC;Fuse J 100 A maximum;SCCR: 100 kA at 600 V AC;Fuse T 100 A maximum;SCCR: 100 kA at 600 V AC;Fuse RK1 100 A maximum;SCCR: 100 kA at 600 V AC;Fuse RK5 100 A maximum;SCCR: 100 kA at 600 V AC
Coil Voltage
120 V AC 60 Hz;110 V AC 50 Hz
Control Circuit Type
Separate control circuit
Control Units
No control units
Pilot Light
No indicator
Auxiliary Contacts
Without
Other Equipment
Fuse not supplied
Terminal Type
Screw clamp terminals
Height
5.13 in (130.30 mm)
Width
4.31 in (109.47 mm)
Depth
4.94 in (125.48 mm)
Enclosure Type
Not rated (open device)
Certifications
UL listed file E78351 CCN NLDX;CSA
Category
21192-8502;36 SC;SD(NOT S*R;T;W)
Discount Schedule
CP1
GTIN
785901881612
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.20 in (18.3 cm)
Package 1 Width
6.69 in (17.0 cm)
Package 1 Length
9.29 in (23.6 cm)
Package 1 Weight
5.71 lb(US) (2.59 kg)
Warranty
18 months
