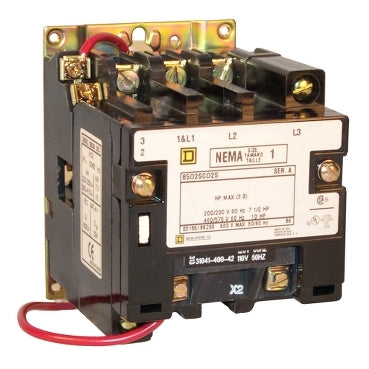

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8502SCO2V03
Overview Details for 8502SCO2V03
NEMA Contactor, Type S, nonreversing, Size 1, 27A, 3 pole, 220/240 VAC 50/60 Hz coil, open style
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating. Three phase NEMA Size 1 contactors have 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 220/240 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.Specifications
- Product Type
- Contactor
- Product Range
- 8502S
- Contactor Type
- Non-reversing
- NEMA Size
- 1
- Rated Current
- 27 A
- Number of Poles
- 3P
- Maximum Voltage Rating
- 600 V AC
- Phase
- 3 phase
- Horsepower Rating
- 7.5 HP 200 V AC;7.5 HP 230 V AC;10 HP 460 V AC;10 HP 575 V AC
- SCCR
- Circuit-breaker 70 A maximum;SCCR: 100 kA at 480 V AC;Fuse J 60 A maximum;SCCR: 100 kA at 600 V AC;Fuse T 60 A maximum;SCCR: 100 kA at 600 V AC;Fuse RK1 60 A maximum;SCCR: 100 kA at 600 V AC;Fuse RK5 60 A maximum;SCCR: 100 kA at 600 V AC
- Coil Voltage
- 240 V AC 60 Hz;220 V AC 50 Hz
- Control Circuit Type
- Common control circuit
- Control Units
- No control units
- Pilot Light
- No indicator
- Auxiliary Contacts
- Without
- Other Equipment
- Fuse not supplied
- Terminal Type
- Screw clamp terminals
- Height
- 4.34 in (110.24 mm)
- Width
- 3.22 in (81.79 mm)
- Depth
- 4.22 in (107.19 mm)
- Enclosure Type
- Not rated (open device)
- Certifications
- UL listed file E78351 CCN NLDX;CSA
- Category
- 21192-8502;36 SC;SD(NOT S*R;T;W)
- Discount Schedule
- CP1
- GTIN
- 785901764038
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.50 in (11.43 cm)
- Package 1 Width
- 5.90 in (14.986 cm)
- Package 1 Length
- 8.00 in (20.32 cm)
- Package 1 Weight
- 3.26 lb(US) (1.479 kg)
- Warranty
- 18 months
