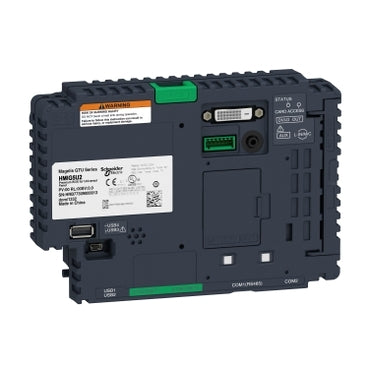

HMIG5U2 | Open BOX for Universal Panel | Square D

Brand: Square DSKU: HMIG5U2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HMIG5U2

Jump to: Overview & Specifications Reviews

Overview Details for HMIG5U2

Open BOX for Universal Panel

Operating system : Windows Embedded 7.
Data storage equipment : 32 GB CFast card.
Port Ethernet : 10BASE-T/100BASE-TX/1000BASE-T.
Memory description : Backup memory 512 kB NVRAM Internal 2 GB RAM.
[Us] rated supply voltage : 12...24 V DC power supply.
Communication port protocol : Modbus TCP/IP, Uni-Telway, Modbus.

This product is part of the Harmony GTU range, an offer of High performance IoT-ready modular HMI panels from 7 to 19inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 2GB. This open box supports Windows Embedded 7 operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is certified by ATEX, CE, CULus, IEC, CUL, GL, LR, BV, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. Harmony GTU (formerly known as Magelis GTU) are universal panels that include smartphone-like interface and Wireless technology. They offer unmatched comfort of use with no compromise on performance and openness.

Specifications

Range of Product: Harmony GTU
Product or Component Type: Base unit
device short name: Open Box
Range Compatibility: Harmony GTU
[Us] rated supply voltage: 12...24 V DC power supply
integrated connection type: Ethernet TCP/IP 2 RJ45;COM1 serial link RJ45 RS485 110...115200 bit/s;COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s;Auxiliary port terminal block;Expansion unit fieldbus card;USB 2.0 port mini B USB;DVI-D video port DVI-D;Microphone mini-jack;USB 2.0 port 3 USB type A
communication port protocol: Modbus;Modbus TCP/IP;Uni-Telway
operating system: Windows Embedded 7
software package: Internet Explorer;Vijeo Citect web client;Vijeo Designer run time;.NET framework 4.0;Adobe PDF reader;Multimedia player;Office reader;VNC client/server
processor name: Intel X86
data storage equipment: 32 GB CFast card
port Ethernet: 10BASE-T/100BASE-TX/1000BASE-T
memory description: 512 kB NVRAM backup memory;2 GB RAM internal
type of cooling: Natural convection
Width: 7.40 in (188 mm)
Height: 5.16 in (131 mm)
depth: 1.77 in (45 mm)
Net Weight: 1.98 lb(US) (0.9 kg)
standards: CSA C22.2 No 142;ANSI/ISA 12-12-01;UL 508;Class I division 2 CSA C22.2 No 213;IEC 61132-2
product certifications: CE;CULus;ATEX;IEC-Ex;RCM;GL;KC;CUL;EAC;ABS;BV;CCS;DNV;LR;RINA
ambient air temperature for operation: 32…140 °F (0…60 °C)
ambient air temperature for storage: -4…140 °F (-20…60 °C)
pollution degree: 2 EN 61131-2 Ed.3
Relative Humidity: 10…90 % non-condensing
operating altitude: 2000
vibration resistance: 3.5 mm constant amplitude 5…9 Hz) EN/IEC 61131-2;9.8 m/s² 9…150 Hz) EN/IEC 61131-2
electromagnetic compatibility: Electrostatic discharge immunity testlevel 3 EN/IEC 61000-4-2
Category: 22567-MAGELIS HMI GTU
Discount Schedule: MC2
GTIN: 3606481213785
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.16 in (13.1 cm)
Package 1 Width: 8.27 in (21.0 cm)
Package 1 Length: 10.24 in (26.0 cm)
Package 1 Weight: 2.78 lb(US) (1.262 kg)
Unit Type of Package 2: S04
Number of Units in Package 2: 4
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 15.75 in (40.0 cm)
Package 2 Length: 23.62 in (60.0 cm)
Package 2 Weight: 12.92 lb(US) (5.862 kg)
Unit Type of Package 3: P12
Number of Units in Package 3: 48
Package 3 Height: 31.50 in (80.0 cm)
Package 3 Width: 47.24 in (120.0 cm)
Package 3 Length: 41.34 in (105.0 cm)
Package 3 Weight: 174.92 lb(US) (79.344 kg)
Warranty: 18 months
