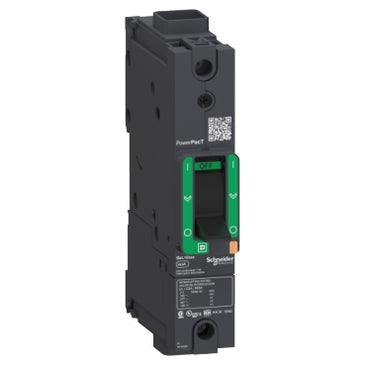

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BGF16020
Overview
Details for BGF16020
PowerPact Molded Case Circuit Breaker, 20A, 1-Pole, 240 VAC 50/60Hz
PowerPact Molded Case Circuit Breaker- rated Current: 20A
- Number of Poles: 1-Pole
- Rated Operational Voltage: 240 VAC 50/60Hz
Specifications
- range
- PowerPact
- product name
- PowerPact B
- device short name
- BG 020
- Product or Component Type
- Circuit breaker
- Device Application
- Distribution
- Line Rated Current
- 20 A
- Number of Poles
- 1P
- protected poles description
- 1t
- Control Type
- Toggle
- breaking capacity code
- G
- breaking capacity
- 65 kA 208Y/120 V AC 50/60 Hz UL 489;65 kA 240 V AC 50/60 Hz UL 489;35 kA 480Y/277 V AC 50/60 Hz UL 489;18 kA 600Y/347 V AC 50/60 Hz UL 489;20 kA 125 V DC UL 489
- [Ue] rated operational voltage
- 240 V AC 50/60 Hz UL 489
- Network Frequency
- 50/60 Hz
- [Ics] rated service breaking capacity
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV IEC 60947-2
- trip unit technology
- Thermal-magneticTM-D;
- continuous current rating
- 80 %
- [Ui] rated insulation voltage
- 800 V IEC 60947-2
- trip unit name
- TM-D
- suitability for isolation
- Yes IEC 60947-2
- utilisation category
- Category A
- Mechanical durability
- 15000 cycles IEC 947-1 Annex F ed 5.2
- Electrical durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 In
- connection pitch
- 1.06 in (27 mm)
- AWG gauge
- AWG 14...AWG 8 aluminium/copper;AWG 6...AWG 3/0 aluminium/copper
- mounting mode
- Clip-on 35 mm symmetrical DIN rail);By screws plate)
- electrical connection
- Terminal nut ON and OFF end
- tightening torque
- 44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4);79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
- Power wire stripping length
- 0.79 in (20 mm)
- Color
- Gray RAL 7016)
- 9 mm pitches
- 3
- Height
- 5.39 in (137 mm)
- Width
- 1.06 in (27 mm)
- Depth
- 3.15 in (80 mm)
- Net Weight
- 1.01 lb(US) (0.46 kg)
- Quantity per Set
- Set of 1
- circuit breaker application
- HACR rated
- quality labels
- CE
- Standards
- NMX J-266;EN/IEC 60947-2;UL 489;NEMA AB1;GB 14048.2;CSA C22.2 No 5;EN/IEC 60947-5-1
- product certifications
- UL;IEC;CCC;EAC;CSA;NOM
- IP degree of protection
- Front cover IP40 IEC 60529
- IK degree of protection
- IK07 IEC 62262
- pollution degree
- 3 IEC 60947-1
- Ambient air temperature for operation
- -13…158 °F (-25…70 °C)
- Ambient Air Temperature for Storage
- -58…185 °F (-50…85 °C)
- operating altitude
- 6561.68 ft (2000 m) without derating;5000 m with derating
- Category
- 01131 - BG UNIT MOUNT BREAKER/SWITCH
- Discount Schedule
- DE2
- GTIN
- 3606481193001
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.40 in (3.556 cm)
- Package 1 Width
- 4.70 in (11.938 cm)
- Package 1 Length
- 7.50 in (19.05 cm)
- Package 1 Weight
- 16.00 oz (453.6 g)
