    8903LA1000V03 | 8903L electrically held lighting contactor, 10 P, 10 NO, 30 A, 600 V, 220/240 V 50/60 Hz coil, NEMA 3R/12 | Square D

    Brand: Square DSKU: 8903LA1000V03

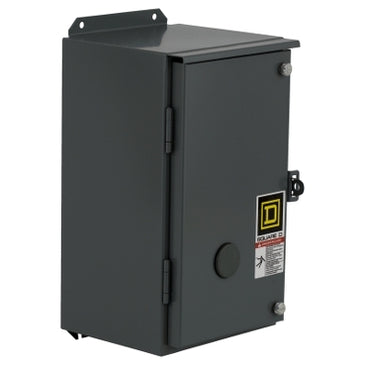

    Square D | 8903LA1000V03
    The photo is for representation purposes only and may not be a photo of product being purchased.
    Search products similar to 8903LA1000V03
    Jump to: Overview & Specifications Reviews

    Overview Details for 8903LA1000V03

    8903L electrically held lighting contactor, 10 P, 10 NO, 30 A, 600 V, 220/240 V 50/60 Hz coil, NEMA 3R/12

    Specifications

    Product or Component Type
    Electrically Held Lighting Contactor
    Range of Product
    8903L
    Control Circuit
    Separate control circuit
    Control Circuit Voltage
    220 V AC 50 Hz;240 V AC 60 Hz
    inrush power in VA
    180 VA 60 Hz;170 VA 50 Hz
    hold-in power consumption in VA
    35 VA 60 Hz;35 VA 50 Hz
    Current Rating
    20 A tungsten;30 A fluorescent
    Number of Poles
    10P 10 NO
    Control Unit
    No control units
    Pilot Light
    No indicator
    Electrical Connection
    Screw-clamp terminals
    Height
    15.75 in (400 mm)
    Depth
    8.50 in (216 mm)
    Width
    8.11 in (206 mm)
    Enclosure Type
    NEMA 12 painted sheet steel surface
    Product Certifications
    UL Listed;CSA
    Category
    21321 - 8903 L (NOT LX)
    Discount Schedule
    CP1
    Returnability
    No
    Country of origin
    MX
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Height
    15.75 in (40.0 cm)
    Package 1 Width
    8.11 in (20.6 cm)
    Package 1 Length
    8.50 in (21.6 cm)
    Package 1 Weight
    21.78 lb(US) (9.88 kg)
    Warranty
    18 months
