    8538SEG33V02S | COMBO STARTER 600VAC 90A NEMA, 110 V AC 50 Hz/ 120 V AC 60 Hz, 3P, Non reversing. | Square D

    Brand: Square DSKU: 8538SEG33V02S
    Square D | 8538SEG33V02S

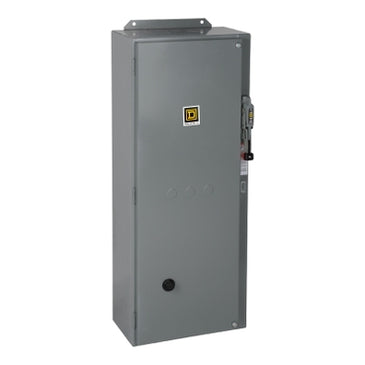

    The photo is for representation purposes only and may not be a photo of product being purchased.
    Search products similar to 8538SEG33V02S
    Jump to: Overview & Specifications Reviews

    Overview Details for 8538SEG33V02S

    COMBO STARTER 600VAC 90A NEMA, 110 V AC 50 Hz/ 120 V AC 60 Hz, 3P, Non reversing.

    Specifications

    Product
    Combination Starter
    Type
    S
    Control Circuit Type
    Separate control circuit
    Control Circuit Voltage
    110 V AC 50 Hz;120 V AC 60 Hz
    Starter Type
    Non reversing
    Number of Poles
    3P
    Horsepower Rating
    50 hp 460 V AC;3 phase;50 hp 575 V AC;3 phase
    Maximum Voltage Rating
    600 V AC
    Control Units
    No control units
    Pilot Light
    No indicator
    Auxiliary Contacts
    Without
    thermal overload type
    Melting alloy 3
    Disconnect Type
    Fusible disconnect switch R;100 A
    NEMA size
    3
    Enclosure Type
    NEMA 1 painted sheet steel with external reset
    Category
    21214 - 8538;39 SE;SF(NOT S*R;T;W)
    Discount Schedule
    CP1
    GTIN
    785901323662
    Returnability
    Yes
    Country of origin
    MX
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    107.00 lb(US) (48.534 kg)
    Warranty
    18 months
