8538SBA21V02S | Type S Combination Starter with Disconnect Switch, Size 0, NEMA 12, 110V 50 Hz 120V 60Hz, 3-Poles, Non-Reversing | Square D

Brand: Square DSKU: 8538SBA21V02S

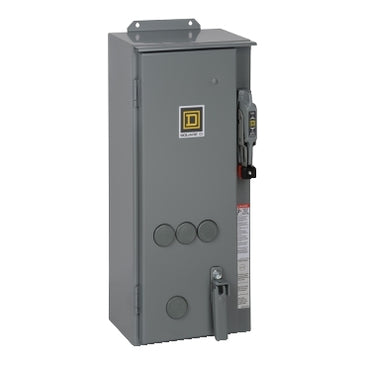

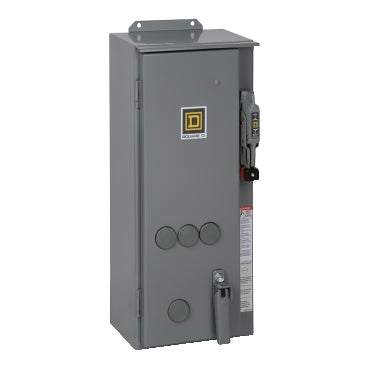

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 8538SBA21V02S

Type S Combination Starter with Disconnect Switch, Size 0, NEMA 12, 110V 50 Hz 120V 60Hz, 3-Poles, Non-Reversing

Type S Full Voltage Starter with Disconnect Switch

Product: Combination Starter
Type: S
Control Circuit Type: Separate control circuit
Control Circuit Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
Starter Type: Non reversing
Number of Poles: 3P
Horsepower Rating: 3 hp 200 V AC;3 phase;3 hp 230 V AC;3 phase;5 hp 460 V AC;3 phase;5 hp 575 V AC;3 phase
Maximum Voltage Rating: 600 V AC
Control Units: No control units
Pilot Light: No indicator
Auxiliary Contacts: Without
thermal overload type: Melting alloy 3
Disconnect Type: Non-fusible disconnect switch
NEMA size: 0
Enclosure Type: NEMA 12 painted sheet steel with external reset
Category: 21212-8538;39SB(NOT S*R;S*T;S*W)
Discount Schedule: CP1
GTIN: 785901830405
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.60 in (26.924 cm)
Package 1 Width: 10.60 in (26.924 cm)
Package 1 Length: 27.00 in (68.58 cm)
Package 1 Weight: 45.00 lb(US) (20.412 kg)
Warranty: 18 months
