8536SBG2V03S | NEMA Type S Non-Reversing Starter Size 0, 3-Pole, Melting Alloy Overload, NEMA 1 +Options | Square D by Schneider Electric

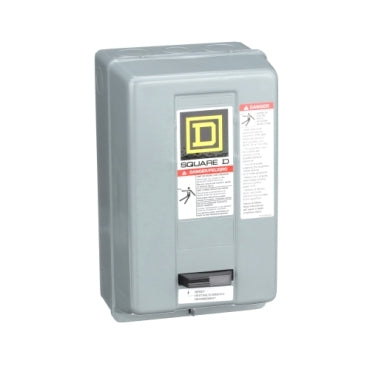

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8536SBG2V03S
Overview
Details for 8536SBG2V03S
NEMA Type S Non-Reversing Starter Size 0, 3-Pole, Melting Alloy Overload, NEMA 1 +Options
NEMA Type S Non-Reversing Starter- Control Circuit Voltage : 220 V AC 50 Hz, 240 V AC 60 Hz
- motor starter type : Non reversing
- Line Rated Current : 18 A
- Number of Poles : 3P
- Horsepower Rating : 3 HP 200 V AC, 3 HP 230 V AC, 5 HP 460 V AC, 5 HP 575 V AC.
- System Voltage : 600 V AC
Specifications
- Product Type
- Motor starter
- Product Range
- S
- Starter Type
- Non reversing
- NEMA Size
- 0
- Rated Current
- 18 A
- Number of Poles
- 3P
- Maximum Voltage Rating
- 600 V AC
- Phase
- 3 phase
- Type of Overload
- Melting alloy 3
- Horsepower Rating
- 3 HP 200 V AC;3 HP 230 V AC;5 HP 460 V AC;5 HP 575 V AC
- SCCR
- Circuit-breaker: 5 kA at 600 V AC;Fuse: 5 kA at 600 V AC
- Coil Voltage
- 220 V AC 50 Hz;240 V AC 60 Hz
- Control Circuit Type
- Separate control circuit
- Control Units
- No control units
- Pilot Light
- Without pilot light
- Auxiliary Contacts
- Without
- Terminal Type
- Screw clamp terminals
- Height
- 10.00 in (254.00 mm)
- Width
- 6.00 in (152.40 mm)
- Depth
- 5.56 in (141.22 mm)
- Enclosure Type
- NEMA 1 painted sheet steel
- Certifications
- UL Listed;CSA;NEMA
- Category
- 21191 - 8502;36 SA;SB(NOT S*R;T;W)
- Discount Schedule
- CP1
- GTIN
- 785901340867
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.00 in (25.4 cm)
- Package 1 Width
- 5.98 in (15.2 cm)
- Package 1 Length
- 5.55 in (14.1 cm)
- Package 1 Weight
- 6.00 lb(US) (2.722 kg)
- Warranty
- 18 months
