8536SAO12V06H308 | Non-Reversing Starter Size 00, 2-Pole, Motor Logic SSOLR +Options | Square D by Schneider Electric

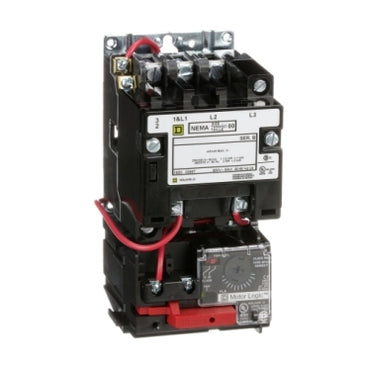

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8536SAO12V06H308
Overview
Details for 8536SAO12V06H308
Non-Reversing Starter Size 00, 2-Pole, Motor Logic SSOLR +Options
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has 3 phase ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 1.5A to 4.5A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 440/480 VAC 50/60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.Specifications
- Product Type
- Motor starter
- Product Range
- S
- Starter Type
- Non reversing
- NEMA Size
- 00
- Rated Current
- 9 A
- Number of Poles
- 3P
- Maximum Voltage Rating
- 600 V AC
- Phase
- 3 phase
- Type of Overload
- Solid state Motor Logic class 10/20
- Horsepower Rating
- 1.5 HP 200 V AC;1.5 HP 230 V AC;2 HP 460 V AC;2 HP 575 V AC
- SCCR
- Circuit-breaker 70 A maximum: 100 kA at 480 V AC;Fuse J 60 A maximum: 100 kA at 600 V AC;Fuse T 60 A maximum: 100 kA at 600 V AC;Fuse RK1 60 A maximum: 100 kA at 600 V AC;Fuse RK5 60 A maximum: 100 kA at 600 V AC
- Coil Voltage
- 440 V AC 50 Hz;480 V AC 60 Hz
- Control Circuit Type
- Common control circuit
- Control Units
- No control units
- Pilot Light
- Without pilot light
- Auxiliary Contacts
- Without
- Terminal Type
- Screw clamp terminals
- Height
- 6.81 in (172.96 mm)
- Width
- 3.50 in (88.90 mm)
- Depth
- 4.22 in (107.19 mm)
- Enclosure Type
- Not rated (open device)
- Certifications
- UL Listed;CSA;NEMA
- Category
- 21191 - 8502;36 SA;SB(NOT S*R;T;W)
- Discount Schedule
- CP1
- GTIN
- 785901806097
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.81 in (17.3 cm)
- Package 1 Width
- 3.50 in (8.9 cm)
- Package 1 Length
- 4.21 in (10.7 cm)
- Package 1 Weight
- 5.00 lb(US) (2.268 kg)
- Warranty
- 18 months
