8536SAG12V08H30 | Non-Reversing Starter Size 00, 3-Pole, Motor Logic SSOLR, NEMA 1 +Options | Square D by Schneider Electric

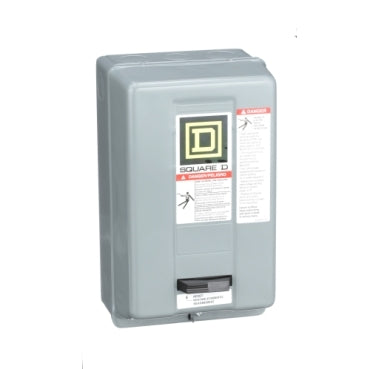

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8536SAG12V08H30
Overview
Details for 8536SAG12V08H30
Non-Reversing Starter Size 00, 3-Pole, Motor Logic SSOLR, NEMA 1 +Options
Non-Reversing Starter- Control Circuit Voltage : 208 V AC 60 Hz
- Motor starter type : Non reversing
- Line Rated Current : 9 A
- Number of Poles : 3P
- Phase : 3 phases
- Horsepower Rating : 1.5 HP 200 V AC, 1.5 HP 230 V AC, 2 HP 460 V AC, 2 HP 575 V AC
- System Voltage : 600 V AC
Specifications
- Product Type
- Motor starter
- Product Range
- S
- Starter Type
- Non reversing
- NEMA Size
- 00
- Rated Current
- 9 A
- Number of Poles
- 3P
- Maximum Voltage Rating
- 600 V AC
- Phase
- 3 phase
- Type of Overload
- Solid state Motor Logic class 10/20
- Horsepower Rating
- 1.5 HP 200 V AC;1.5 HP 230 V AC;2 HP 460 V AC;2 HP 575 V AC
- SCCR
- Circuit-breaker 70 A maximum: 100 kA at 480 V AC;Fuse J 60 A maximum: 100 kA at 600 V AC;Fuse T 60 A maximum: 100 kA at 600 V AC;Fuse RK1 60 A maximum: 100 kA at 600 V AC;Fuse RK5 60 A maximum: 100 kA at 600 V AC
- Coil Voltage
- 208 V AC 60 Hz
- Control Circuit Type
- Common control circuit
- Control Units
- No control units
- Pilot Light
- Without pilot light
- Auxiliary Contacts
- Without
- Terminal Type
- Screw clamp terminals
- Height
- 10.00 in (254.00 mm)
- Width
- 6.00 in (152.40 mm)
- Depth
- 5.56 in (141.22 mm)
- Enclosure Type
- NEMA 1 painted sheet steel
- Certifications
- UL Listed;CSA;NEMA
- Category
- 21191-8502;36 SA;SB(NOT S*R;T;W)
- Discount Schedule
- CP1
- GTIN
- 785901786603
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.00 in (25.4 cm)
- Package 1 Width
- 5.98 in (15.2 cm)
- Package 1 Length
- 5.55 in (14.1 cm)
- Package 1 Weight
- 8.00 lb(US) (3.629 kg)
- Warranty
- 18 months
