8536SAG11V02CF | Non-Reversing Starter Size 00, 2-Pole, Melting Alloy Overload, NEMA 1+Options | Square D
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$513.00
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

Speak With a Technical Expert

Image for Technical Expert

Hours: 9am - 5pm CDT M-F

Call (847) 773-0645 Email Technical Expert

Documents: 8536SAG11V02CF

Datasheet More Info

8536SAG11V02CF | Non-Reversing Starter Size 00, 2-Pole, Melting Alloy Overload, NEMA 1+Options | Square D

Brand: Square DSKU: 8536SAG11V02CF
Square D | 8536SAG11V02CF

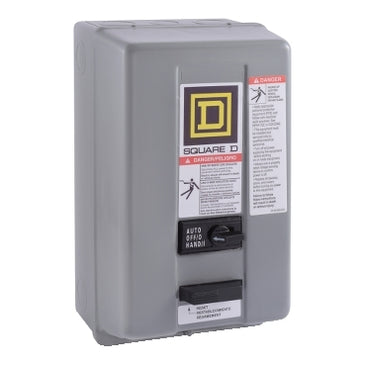

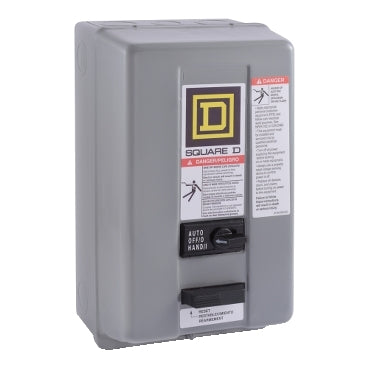

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8536SAG11V02CF
Jump to: Overview & Specifications Reviews

Overview Details for 8536SAG11V02CF

Non-Reversing Starter Size 00, 2-Pole, Melting Alloy Overload, NEMA 1+Options

Non-Reversing Starter
  • Current Rating : 9A
  • Motor starter type : Non reversing
  • Number of Poles : 2P
  • Number of Phases : 1Ph
  • Horsepower Rating : 0.33 HP 115 V AC / 1 HP 230 V AC
  • Maximum Voltage Rating : 600 V AC
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 2 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has single phase ratings of 0.33 HP at 115 VAC and 1 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. This starter is supplied with a HOA selector switch and a secondary fuse. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

Product Type
Motor starter
Product Range
S
Starter Type
Non reversing
NEMA Size
00
Rated Current
9 A
Number of Poles
2P
Maximum Voltage Rating
600 V AC
Phase
1 phase
Type of Overload
Melting alloy 1
Horsepower Rating
0.33 HP 115 V AC;1 HP 230 V AC
SCCR
Circuit-breaker: 5 kA at 600 V AC;Fuse: 5 kA at 600 V AC
Coil Voltage
110 V AC 50 Hz;120 V AC 60 Hz
Control Circuit Type
Common control circuit
Control Units
Selector switch (HAND-OFF-AUTO)
Pilot Light
Without pilot light
Auxiliary Contacts
Without
Other Equipment
1 fuse
Terminal Type
Screw clamp terminals
Height
10.00 in (254.00 mm)
Width
6.00 in (152.40 mm)
Depth
5.56 in (141.22 mm)
Enclosure Type
NEMA 1 painted sheet steel
Certifications
UL Listed;CSA;NEMA
Category
21191 - 8502;36 SA;SB(NOT S*R;T;W)
Discount Schedule
CP1
Returnability
No
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
10.00 in (25.4 cm)
Package 1 Width
5.98 in (15.2 cm)
Package 1 Length
5.55 in (14.1 cm)
Package 1 Weight
8.00 lb(US) (3.629 kg)
Warranty
18 months
