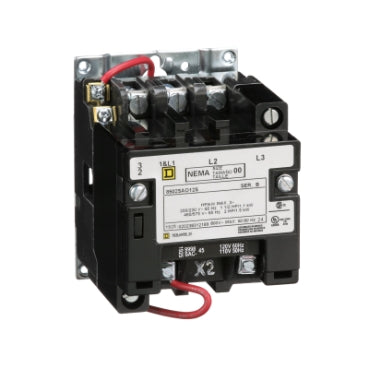

8502SAO12V06 | Class 8502 Type S Magnetic Contactor, Not Rated, 9A, 3-Poles, 440 VAC 50Hz, 480 VAC 60Hz, Non-Reversing | Square D

Class 8502 Type S Magnetic Contactor, Not Rated, 9A, 3-Poles, 440 VAC 50Hz, 480 VAC 60Hz, Non-Reversing

Class 8502 Type S Full Voltage Magnetic Contactor:

• Non-Reversing
• NEMA Size: 00
• NEMA Degree of Protection: Not Rated
• Line Rated Current: 9A
• Rated Power in Horsepower: 2 HP 575 VAC, 1.5 HP 200 VAC, 2 HP 460 VAC, 1.5 HP 230 VAC
• Phase: 3-Phase
• Number of Poles: 3-Pole
• Control Circuit: Common Control Circuit
• Control Circuit Voltage: 440 VAC 50Hz, 480 VAC 60Hz
• Mounting: Surface
• System Voltage: 600VAC
• Electrical Connection: Screw Clamp Terminals

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing contactor has a 9 ampere rating. Three phase NEMA Size 00 contactors have 1.5 HP at 200 and 230 VAC and 2 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
