8501XO30V02 | RELAY 600VAC 10AMP NEMA +OPTIONS | Square D

Brand: Square DSKU: 8501XO30V02

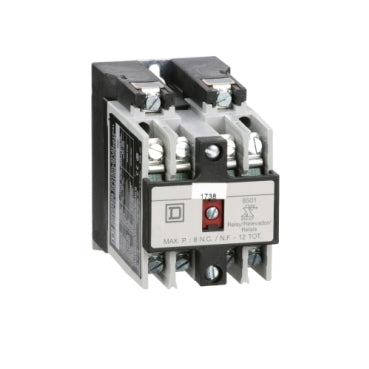

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501XO30V02

Jump to: Overview & Specifications Reviews

Overview Details for 8501XO30V02

RELAY 600VAC 10AMP NEMA +OPTIONS

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with three 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The three plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. !8 to 12 AWG copper wire can be used with this relay. Relay has a 110/120 VAC 50/60 VAC replaceable coil. Relay is UL listed and CSA certified.

Specifications

Range: 8501X
Relay Type: Control
Product: Relay
Current Rating: 10 A AC;5 A DC
Coil Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
control circuit voltage limits: Operational 0.85...1.1 Uc AC 50/60 Hz
rated breaking capacity: 6 A 120 V AC inductive control circuit UL 508;3 A 240 V AC inductive control circuit UL 508;1.5 A 480 V AC inductive control circuit UL 508;1.2 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC resistive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
[Icm] rated short-circuit making capacity: 60 A 120 V AC inductive control circuit UL 508;30 A 240 V AC inductive control circuit UL 508;15 A 480 V AC inductive control circuit UL 508;12 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC inductive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
inrush power in VA: 148 VA 60 Hz;143 VA 50 Hz
hold-in power consumption in VA: 23 VA 60 Hz;25 VA 50 Hz
operating time: 15 ms - pick-up;16 ms - drop-out
Contact Configuration: 3 NO 3 standard contact cartridges
Electrical Connection: Screw clamp terminals
AWG gauge: AWG 18...AWG 12 copper
tightening torque: Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals
Mounting Type: Panel
Height: 3.5 in (88.90 mm)
Width: 2.23 in (56.64 mm)
Depth: 3.95 in (100.33 mm)
Operating Temperature: -40…160 °F (-40…71 °C)
Certifications: UL listed file E78403 CCN NKCR;CSA LR60905 class 3211 03
Category: 21158-8501 XO (AC)
Discount Schedule: CP2
GTIN: 785901001225
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.30 in (8.382 cm)
Package 1 Width: 4.50 in (11.43 cm)
Package 1 Length: 6.40 in (16.256 cm)
Package 1 Weight: 34.08 oz (966.152 g)
Warranty: 18 months
