SCE-90XM7824SS | NEMA 3R, 12, 4, 4X | S.S. 2DR XM Enclosure, 90H x 78W x 24D | Saginaw

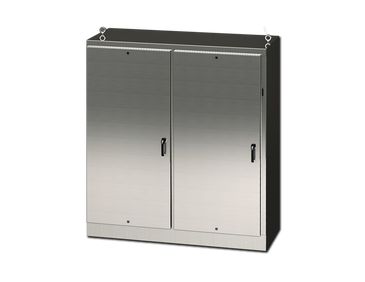

Saginaw | SCE-90XM7824SS

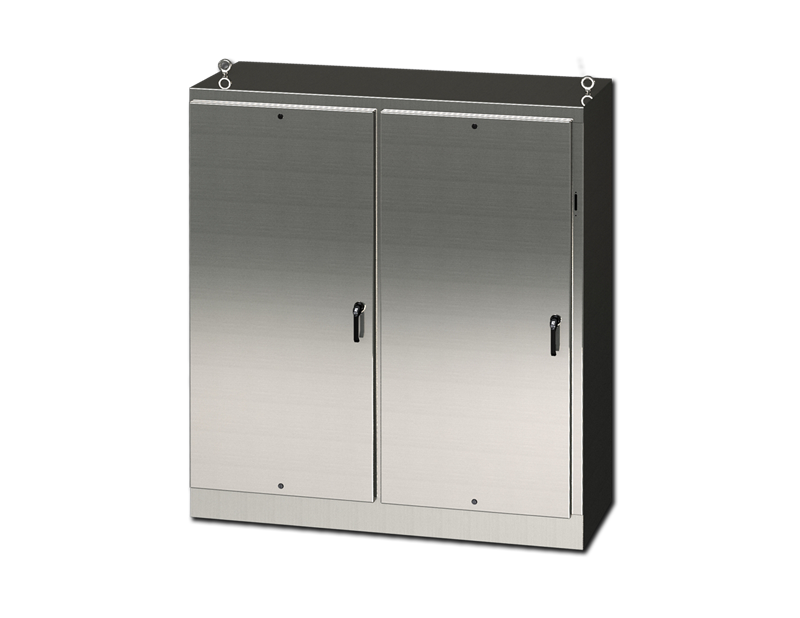

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-90XM7824SS

Overview

Details for SCE-90XM7824SS

NEMA 3R, 12, 4, 4X | S.S. 2DR XM Enclosure, 90H x 78W x 24D

Construction

  • 0.104 In. stainless steel Type 304.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Body stiffeners in large enclosures for extra rigidity.
  • Heavy duty lifting eyes anchor into reinforced top.
  • Removable centerposts permit easy panel installation.
  • Stainless steel concealed hinges.
  • Black zinc die cast coinproof/padlocking handle on main door with black zinc die cast padlocking handle on slave doors.
  • 3-point latching mechanism.
  • Ends of latch rods have ramp shoes for easier door closing.
  • Panel supports.
  • Large removable print pockets.
  • Pour in place oil and water resistant gasket
  • Removable panels mount on collar studs.
  • Master door is far right-hand door on all enclosures.
  • Defeater on master door requires a screwdriver to open.
  • Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order.
  • Ground stud on door.
  • Provisions for light kit.

Application

Designed to house electrical equipment and provide protection from dirt, dust, oil and water and to house most standard type disconnects. For outdoor application a drip shield is recommended.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Sub-panels are powder coated white.

Industry Standards - (IS6)

  • NEMA Type 3R, 4, 4X, 12 and Type 13
  • UL Listed Type 3R, 4, 4X and 12
  • CSA Type 4, 4X and 12
  • IEC 60529
  • IP 66

Notes

Disconnect switch (or circuit breaker) and operating mechanism are not furnished with enclosure.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-90XM7824SS
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
1 Enclosure Rating NEMA 4X
Enclosure Depth (IN) 24
Enclosure Height (IN) 90
Enclosure Type S.S. 2DR XM Enclosure
Enclosure Width (IN) 78
