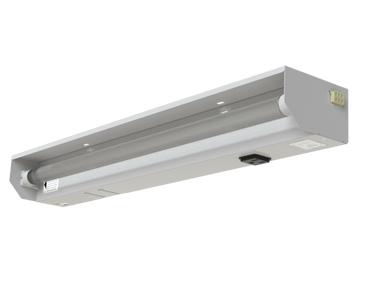

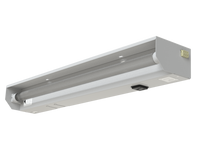

SCE-LF24 | Fixture, LED Light | 2.75 (H) x 24.18 (W) x 4 (D) | Saginaw
Documents and manuals
Saginaw SCE-LF24 Documents
Overview
Details for SCE-LF24
Fixture, LED Light | 2.75 (H) x 24.18 (W) x 4 (D)
Construction
- 4000K Frosted White
- 18 inch 850 Lumens
- 24 inch 900 Lumens
- LF1824 24VDC 500 Lumens
Application
LED light fixture is designed to provide interior lighting for an enclosure. Can be mounted to light channels in the top of an enclosure or on the front flange of most enclosures. Door activated adjustable switch, switch can be removed and relocated. Terminal block on each end of fixture, making it easy to wire and daisy chain multiple lights continuously. LED bulb with PVC frosted white protective light diffuser included. Housing made from steel and powder coated white. Units with convenience receptacle outlet are 120 VAC with ground 50/60 HZ. Without convenience receptacle outlet 100 to 277 VAC 50/60 HZ. With the exception of SCE-LF1824VDC.
Industry Standards - (IS24)
- UL Component Recognized
Notes
Model 60
Specifications
Item Number | SCE-LF24 |
Brand | Saginaw |
Accessory | Fixture; LED Light |
Depth (IN) | 4 |
Height (IN) | 2.75 |
UL Rating | IS24 |
Width (IN) | 24.18 |
