SCE-72XEL6112LP | NEMA 3R, 12, 4 | 2DR XEL Enclosure, 72H x 61W x 12D | Saginaw

Brand: SaginawSKU: SCE-72XEL6112LP

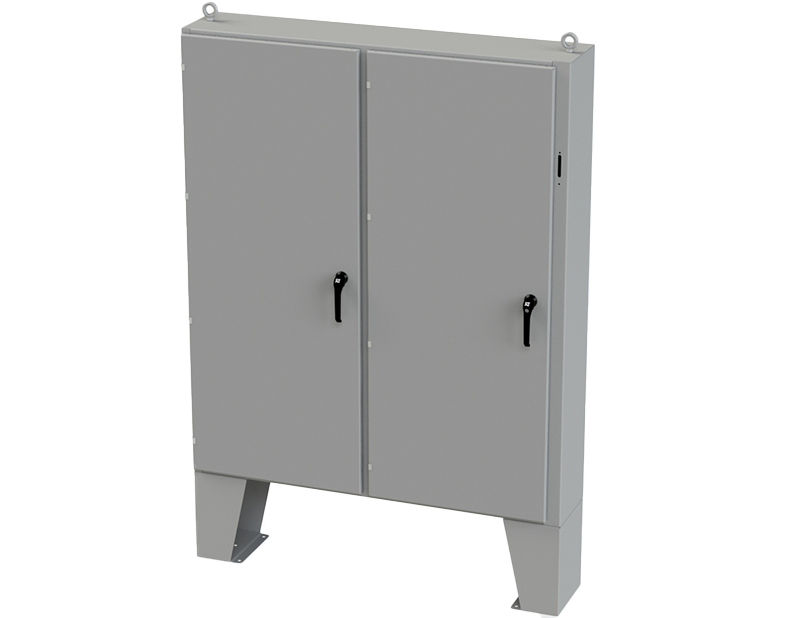

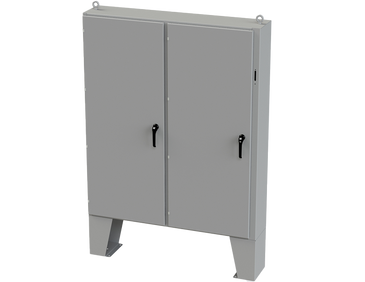

Saginaw | SCE-72XEL6112LP
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-72XEL6112LP
Overview & Specifications ReviewsParts & Accessories

Overview Details for SCE-72XEL6112LP

Construction

  • 0.104 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Pour in place oil and water resistant gasket
  • Concealed hinges.
  • Removable and interchangeable doors.
  • 3-point latching mechanism.
  • Removable print pocket.
  • Lifting eyes for easy handling.
  • Ground studs on door and body.
  • Collar studs 3/8-16 provided for mounting optional panels.
  • 15 In. removable floor stand.
  • Removable center post.
  • Mechanical interlock.
  • No door stiffeners required.
  • Black zinc die cast coinproof/padlocking handle on main door of disconnect enclosures. Black zinc die cast padlocking handle on all other doors.
  • Provisions for light kit.
  • Hole plugs provided to seal holes in bottom of enclosure.

Application

Designed to house electrical equipment and provide protection from dirt, dust, oil and water and to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

  • NEMA Type 3R, 4, 12 and Type 13
  • UL Listed Type 3R, 4 and 12
  • CSA Type 3R, 4 and 12
  • IEC 60529
  • IP 66

Notes

Disconnect switch (or circuit breaker and operating mechanism) are not furnished with this enclosure.


Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-72XEL6112LP
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
Enclosure Depth (IN) 12
Enclosure Height (IN) 72
Enclosure Type 2DR XEL Enclosure
Enclosure Width (IN) 61
