SCE-72XD3418G | NEMA 3R, 12 | 1DR XD Enclosure, 72H x 34W x 18D | Saginaw
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$3,322.11
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships via FREIGHT
FREIGHT DAMAGE POLICY
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

The product is not cancelable or returnable unless found defective

Speak With a Technical Expert

Image for Technical Expert

SCE-72XD3418G | NEMA 3R, 12 | 1DR XD Enclosure, 72H x 34W x 18D | Saginaw

Brand: SaginawSKU: SCE-72XD3418G

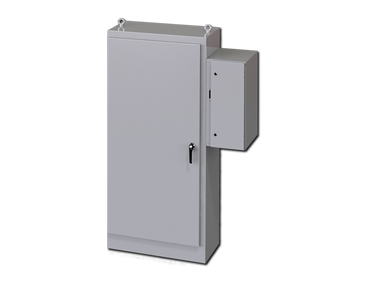

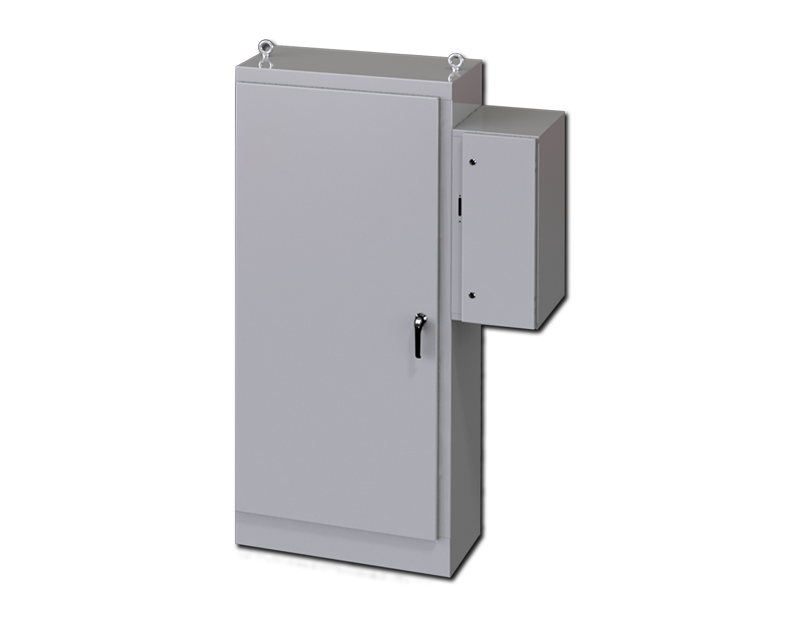

Saginaw | SCE-72XD3418G
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-72XD3418G

Overview Details for SCE-72XD3418G

Construction

  • 0.125 In. carbon steel.
  • Seams continously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Body stiffeners in large enclosures for extra rigidity.
  • Heavy duty lifting eyes anchor into reinforced top.
  • Concealed hinges.
  • Black zinc die cast padlocking handles.
  • 3-point latching mechanism.
  • Large removable print pockets.
  • Pour in place oil and water resistant gasket
  • Removable panels are mounted on collar studs.
  • Defeater on master door requires a screwdriver to open.
  • Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
  • Ground stud on door and body.
  • Provisions for light kit.
  • Hole plugs provided to seal holes in bottom of enclosure.

Application

Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provides protection from dirt, dust, oil and water and can house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Sub-panels are powder coated white.
Part numbers ending in "G" have galvanized subpanels installed.

Industry Standards - (IS3)

  • NEMA Type 3R, 12 and Type 13
  • UL Listed Type 3R and 12
  • CSA Type 3R and 12
  • IEC 60529
  • IP 55

Notes

For use with 30 to 200 Amp Flange mount disconnect Square D, Allen Bradley, and some Eaton/Cutler Hammer operating handles.
Disconnect switch (or circuit breaker) and operating mechanism are not furnished with enclosure.

*Part numbers ending in "G" have galvanized sub-panels installed.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-72XD3418G
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
Enclosure Depth (IN) 18
Enclosure Height (IN) 72
Enclosure Type 1DR XD Enclosure
Enclosure Width (IN) 34
