SCE-ASPBG-09-25 | Plugs, Hole - Bulk | 1.4 (H) x 1.4 (W) x 0.5 (D) | Saginaw

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-ASPBG-09-25

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-ASPBG-09-25 Documents

FREIGHT DAMAGE POLICY CAD Package Hole Seals. Steel & Stainless Steel More Info

Overview

Details for SCE-ASPBG-09-25

Plugs, Hole - Bulk | 1.4 (H) x 1.4 (W) x 0.5 (D)

Application

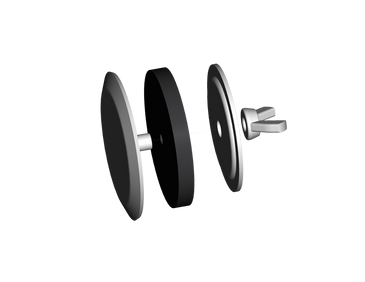

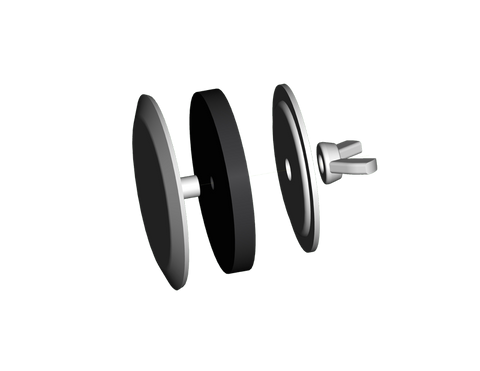

Extra push button holes can be sealed against dust, dirt, oil, and water with a SCE hole seal. Seals will cover most pushbutton hole sizes. Hole seals come with oil-resistant gasket, #10-24 x 3/8" stud, zinc plated wing nut, and plated steel back plate. Available in stainless steel or powder coated finish.

Industry Standards - (IS20)

NEMA Type 3R, 4, 4X and 12
UL Recognized Type 3R, 4, 4X and 12
IEC 60529
IP 56

Notes

UL File # E69392
UL File #E500068
