MEP-5061 | Damper Actuator | 50 in-lb | Non-Spring Return | 24V | Floating | KMC

Damper Actuator | 50 in-lb | Non-Spring Return | 24V | Floating

Brand: KMCSKU: MEP-5061

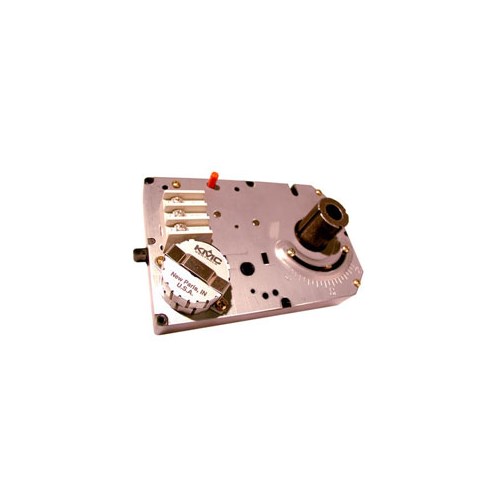

KMC | MEP-5061
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MEP-5061

Overview Details for MEP-5061

Damper Actuator | 50 in-lb | Non-Spring Return | 24V | Floating

The KMC MEP-5061/5071 3-wire ControlSet Actuators are designed to control small damp?ers such as air terminal unit dampers or VEP-40 se?ries valves. The MEP-5061 is an 18?/minute actuator andthe MEP-5071 is a 60?/minute actuator.The actuator mounts to a 1/2” or 3/8” diameter damper shaft, eliminating the need for expensive and complicated linkages. When mounting to a 3/8” diameter shaft, the HFO-0011 shaft adaptor is required and must be ordered separately. These bidirectional motors may be controlled via an SPDT floating thermostat or building automation system. A minimum of 50 in-lb of torque over the maximum angular rotation of 95? is provided. Both minimum and maximum end stops are stan?dard to limit the rotation. A gear disengagement feature al?lows positioning of the damper and/or gear train without en?er?giz?ing the actuator.An optional feedback potentiometer and/or a single, dou?ble or triple auxiliary switch can be field added.(The MEP-5063/5065/5073 actuators are obsolete. See the MEP-5061/5071 instead.)

Specifications

Actuator Type

Electric

Brand

KMC Controls

Control Input

24 VAC

Fail-Safe

No

Input Types

Tri-state

Mounting

V-Bolt/ Screws

Normality (Fail)

Fail In Place

Power Supply

24 VAC

Selection Guide

Actuator-Only

Timing (sec)

18 Deg /MIN

Torque

50 in-lb
